Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy738
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests' request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80 TONS per MONTH
Features: |
Fatigue Resistance, Oxidation Resistance, Corrosion Resistance |
Shape: |
Wire,Strip,Rod,Pipe,Plate |
Alloy Type: |
Precipitation Hardening High-temperature Alloy |
Raw Materials: |
NI Rem,CR18-21%,Co12-15% ,MO3.5-5.0% |
Executive Standard: |
ASTM |
Delivery State: |
Sosoloid |
Application: |
Manufacture Turbine Disc, Working Blade, High Temperature Fastener, Flame Cylinder Shaft And Turbine Casing And Etc Parts |
Size: |
Negotiable |
Features: |
Fatigue Resistance, Oxidation Resistance, Corrosion Resistance |
Shape: |
Wire,Strip,Rod,Pipe,Plate |
Alloy Type: |
Precipitation Hardening High-temperature Alloy |
Raw Materials: |
NI Rem,CR18-21%,Co12-15% ,MO3.5-5.0% |
Executive Standard: |
ASTM |
Delivery State: |
Sosoloid |
Application: |
Manufacture Turbine Disc, Working Blade, High Temperature Fastener, Flame Cylinder Shaft And Turbine Casing And Etc Parts |
Size: |
Negotiable |

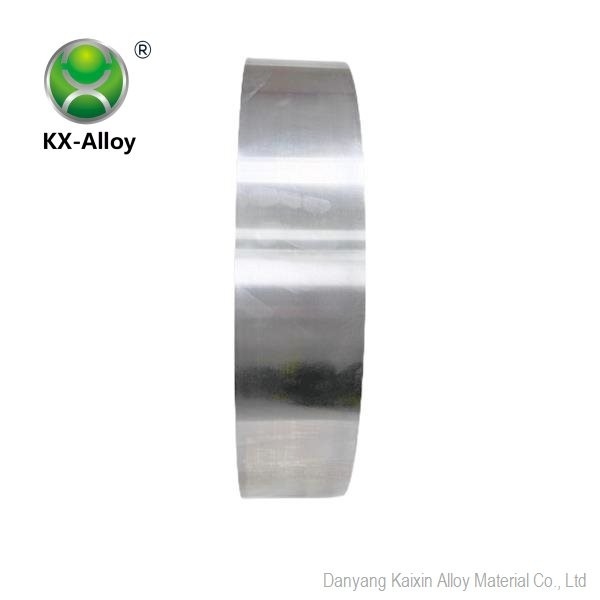

KX Inconel 738 Nickel Alloy Wire Round Bar Tube Steel Sheet Light Rod on Inconel Alloy
Product Description and Application
Inconel738 is also known as GH4738, Inconel738Waspaloy(USA), NC20K14(France)
Inconel738 is that Ni-Cr-Co Precipitate-hardening deformed superalloy, the use temperature is below 815℃. Cobalt, chromium and molybdenum are added to the alloy for solution strengthening, aluminum and titanium are added to form γ’ phase, boron and zirconium are added to purify and strengthen the grain boundaries. The alloy has high yield strength and fatigue resistance at 760℃~870℃. It has high oxidation resistance and corrosion resistance in gas turbine atmosphere below 870℃.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| C | Cr | Ni | Co | Mo | Al | Ti |
| 0.03-0.10 | 18.0-21.0 | Rem | 12.0-15.0 | 3.50-5.00 | 1.20-1.60 | 2.75-3.25 |
| B | Zr | Fe | Mn | Si | P | S |
| ≤ | ||||||
| 0.003-0.010 | 0.02-0.08 | 2.0 | 0.10 | 0.15 | 0.015 | 0.015 |
| Density | 8.24g/cm3 |
| Melting Point | 1260-1320℃ |
| Magnetic Energy | Nil |
Product Heat Treatment Institution
1080℃±10℃, 4h, air cooling +840℃, 24h, air cooling +760℃, 16h, air cooling. Can produce bar, forging billet, strip, pipe, wire and etc., Usually delivered without heat treatment, the plates are delivered after solution treatment
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm
|
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
