Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy SOFT79
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests' request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80 TONS per MONTH
Features: |
High Or Very High Initial Permeability And Large Permeability, Very Low Coercivity, Lower Saturation Magnetic Induction |
Shape: |
Wire,Strip,Rod,Tube,Plate |
Alloy Type: |
Soft Magnetic Alloy |
Raw Materials: |
NI78.5-80%,MO3.8-4.1%,Fe Rem |
Executive Standard: |
ASTM,GB/T37797 |
Delivery State: |
Sosoloid |
Application: |
High Sensitivity And Small Power Transformers, Small Power Magnetic Amplifiers, Relays, Chokes, Magnetic Recording Devices For Magnetic Head, Magnetic Shield, All Kinds Of Tape Wound Core, Cutting Core And Laminated Core. |
Size: |
Negotiable |
Features: |
High Or Very High Initial Permeability And Large Permeability, Very Low Coercivity, Lower Saturation Magnetic Induction |
Shape: |
Wire,Strip,Rod,Tube,Plate |
Alloy Type: |
Soft Magnetic Alloy |
Raw Materials: |
NI78.5-80%,MO3.8-4.1%,Fe Rem |
Executive Standard: |
ASTM,GB/T37797 |
Delivery State: |
Sosoloid |
Application: |
High Sensitivity And Small Power Transformers, Small Power Magnetic Amplifiers, Relays, Chokes, Magnetic Recording Devices For Magnetic Head, Magnetic Shield, All Kinds Of Tape Wound Core, Cutting Core And Laminated Core. |
Size: |
Negotiable |

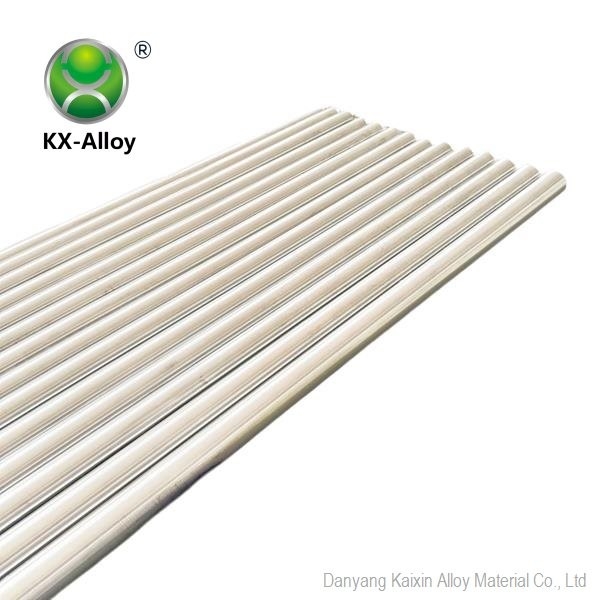

KX Hyra80 Soft Magnetic Materials Soft Iron Light Rod On Soft Magnetic Alloy
Product Description and Application
Hyra80 is also knows a soft magnetic alloy 1J79
Hyra80 alloy is an iron-nickel alloy with excellent magnetism, corrosion resistance and high temperature stability, which is widely used in magnetic sensors, magnetic noise filters, magnetic inductors, magnetic amplifiers and etc fields, as well as aerospace, national defense, electronics, automation, medical and etc fields.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Type | Grade | Chemical Composition (Mass fraction)% | ||||||||||
| C≤ | P≤ | S≤ | Mn | Si | Ni | Cr | C0 | Mo | Cu≤ | Fe | ||
| Soft Magnetic Alloy with High Initial Permeability | Hyra80 | 0.03 | 0.02 | 0.02 | 0.60～ 1.10 | 0.30～ 0.50 | 78.5～ 80.0 | --- | --- | 3.8～ 4.1 | 0.2 | Rem |
| Grade |
Resistivity／(μΩ ·m) |
Density ／(g／ cm3) |
Curie point／℃ |
Saturation magnetostriction coefficient(× 10一2) |
Brinell hardness HBs |
Tensile strength／MPa | Yield strength／MPa | elongation(％) | ||||
|
Cold Hard State |
Soft State |
Cold Hard State |
Soft State |
Cold Hard State |
Soft State |
Cold Hard State |
Soft State | |||||
| Hyra80 | O．55 | 8.6 | 450 | 2 | 210 | 120 | 1030 | 560 | 980 | 150 | 3 | 50 |
| Grade | Linear Expansion Coefficient in the following Temperature Range／(×10-6/ ℃) | ||||||||
| 20～100℃ | 20～ 200℃ | 20～ 300℃ | 20～400℃ | 20～ 500℃ | 20～ 600℃ | 20～ 700℃ | 20～ 800℃ | 20～ 900℃ | |
| Hyra80 | 10.3～ 10.8 | 10.9～ 11.2 | 11.4～ 12.9 | 11.9～ 12.5 | 12.3～ 13.2 | 12.7～ 13.4 | 13.1～ 13.6 | 13.4～ 13.6 | 13.2～ 13.7 |
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
