Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy EX46
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests's request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80TONS per MONTH
Features: |
Corrosion Resistance, Good Workability And Weldability |
Shape: |
Wire,Strip,Rod,Tube,Plate |
Alloy Type: |
Nickel-iron Expansion Alloy |
Raw Materials: |
NI46% |
Executive Standard: |
ASTM，YB/TYB/T 5231 |
Delivery State: |
Soft State |
Application: |
Used In A Variety Of Electronic Applications, Especially For Glass And Ceramic Seals |
Size: |
Negotiable |
Features: |
Corrosion Resistance, Good Workability And Weldability |
Shape: |
Wire,Strip,Rod,Tube,Plate |
Alloy Type: |
Nickel-iron Expansion Alloy |
Raw Materials: |
NI46% |
Executive Standard: |
ASTM，YB/TYB/T 5231 |
Delivery State: |
Soft State |
Application: |
Used In A Variety Of Electronic Applications, Especially For Glass And Ceramic Seals |
Size: |
Negotiable |
KX 4J46 Corrosion Resistant Alloy Light Rod On Expansion Alloy
Product Description and Application
4J46 is also known as Alloy 46,K94600,FeNi46,ASTM F30,Nilo 46,Glass sealing 46.
4J46 is nickel-iron controlled expansion alloy containing 46% nickel. It is suitable for electric vacuum devices such as transmitting tube, oscillation tube, ignition tube, transistor, tube seal plug and relay shell.
It can be firmly sealed with hard glass with a certain coefficient of linear expansion in the temperature range of 20℃-450℃
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| C | P | S | Mn | Si | Cu | Cr | Mo | Ni | Co | Fe |
| Not more than | ||||||||||
| 0.03 | 0.02 | 0.02 | 0.50 | 0.30 | 3.0-4.0 | - | - | 37-38 | 5.0-6.0 | Rem |
| Alloy Type | Sample Heat Treatment Institution | Average Coefficient of Linear Expansion ɑ(10-6/K) | ||
| 20-300℃ | 20-400℃ | 20-500℃ | ||
| 4J46 | It is heated to 800 ~ 900 ℃ in hydrogen atmosphere, heat preservation 1 hour and cool to less than 300 ℃ at a speed of no more than 5℃/min | 5.5-6.5 | 5.6-6.6 | 7.0-8.0 |
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |

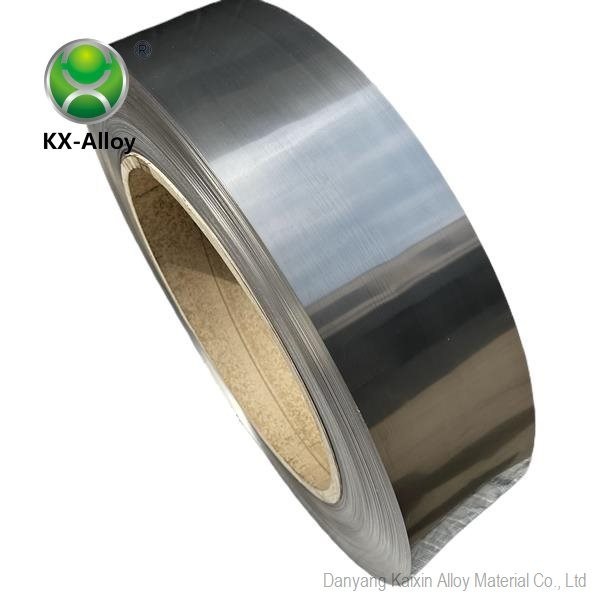

| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm
|
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
