Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy 3J01
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests' request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80 TONS per MONTH
Features: |
High Elasticity |
Shape: |
Wire,Strip,Rod,Tube,Plate |
Alloy Type: |
Elastic Alloy |
Raw Materials: |
NI34.5-36.5%,CR11.5-13.0% |
Executive Standard: |
GOST(YB/T5256-2001) |
Delivery State: |
Cold Rolling |
Application: |
Mechanical, Electronic, Medical And Etc Fields |
Size: |
Negotiable |
Features: |
High Elasticity |
Shape: |
Wire,Strip,Rod,Tube,Plate |
Alloy Type: |
Elastic Alloy |
Raw Materials: |
NI34.5-36.5%,CR11.5-13.0% |
Executive Standard: |
GOST(YB/T5256-2001) |
Delivery State: |
Cold Rolling |
Application: |
Mechanical, Electronic, Medical And Etc Fields |
Size: |
Negotiable |
KX Ni36CrTiAl Elastic Properties Strong Support Light Rod On Elastic Alloy
Product Description and Application
Ni36CrTiAl is also known as "KN702", "36HXT", "3J01"
Ni36CrTiAl alloy is an Fe-Ni-Cr alloy with high elasticity, corrosion resistance and weak magnetism. After solid solution treatment, it has good plasticity, low hardness and easy process and shape. High mechanical and elastic properties can be obtained after solid solution or cold strain aging treatment. It has been widely used in mechanical, electronic, medical and etc fields, which has provided strong support and promotion for the development of these fields.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Grade | Chemical Composition(Mass Fraction)/% | |||||||||
| C | Mn | Si | P | S | Ni | Cr | Ti | Al | Fe | |
| 3J01 | ≤0.05 | ≤1.00 | ≤0.80 | ≤0.020 | ≤0.020 | 34.5~36.5 | 11.5~13.00 | 2.70~3.20 | 1.00~1.80 | Rem |
| Grade | Shape | Delivery State |
Thickness or Diameter mm |
Tensile Strength Rm N/ mm² |
Elongation A % |
| 3J01 | Strip | Soften | 0.20~0.50 | ≤980 | ≥20 |
| Wire | Cold Draw | 0.20~3.00 | ≥980 | --- | |
| The alloy material mechanical properties of other sizes and delivery state shall be negotiated by both parties. | |||||
| Grade | Shape | Delivery State |
Thickness or Diameter mm |
Tensile Strength Rm N/ mm² |
Elongation A % |
| 3J01 | Strip | Cold Rolling | 0.20~2.50 | 1372 | 5 |
| Soften | 0.20~1.00 | 1176 | 8 | ||
| Wire | Cold Draw | 0.50~5.00 | 1470 | 5 | |
| Rod | Cold Draw | 3.0~18.00 | 1372 | 5 | |
| Circular,Slab |
Hot Rolling Hot Forging
|
6.0~25.0 | 1176 | 10 | |
| ＞25.0~60.0 | 1030 | 14 | |||
| ＞60.0 | 800 | 14 |
| Grade | Delivery State | Thickness mm |
Yield Strength N/mm² Not less than |
| 3J01 | Cold Rolling | 0.50~2.50 | 980 |
| Soften | 0.50~1.00 | 735 |
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |

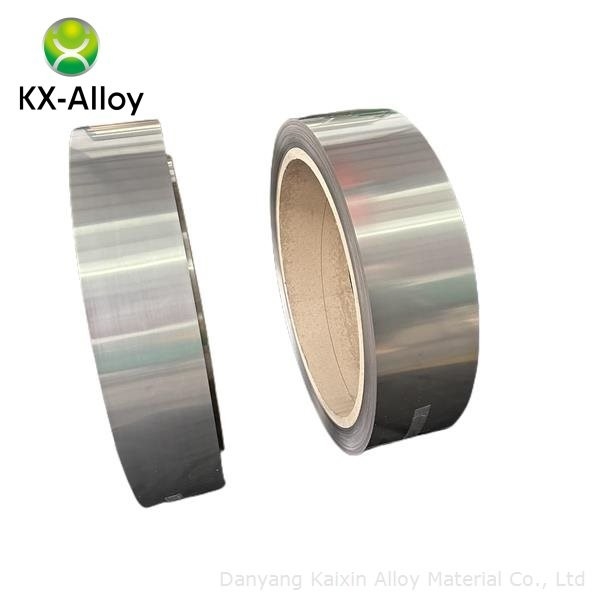

| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
