Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy 3J21
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests' request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80 TONS per MONTH
Features: |
High Elasticity, High Fatigue Resistance, High Corrosion Resistance And Non-magnetic And Etc Good Comprehensive Performance |
Shape: |
Wire,Strip,Rod,Tube,Plate |
Alloy Type: |
High Elastic Alloy |
Raw Materials: |
NI14-16%,CR19-21%,CO39-41%,MO6.5-7.5% |
Executive Standard: |
YB/T5253-2011 ,GOST |
Delivery State: |
Cold Rolled And Cold Drawn |
Size: |
Negotiable |
Application: |
It Is Suitable For Making Elastic Elements Of Small Section And Precision Devices On Aerospace Spacecraft |
Features: |
High Elasticity, High Fatigue Resistance, High Corrosion Resistance And Non-magnetic And Etc Good Comprehensive Performance |
Shape: |
Wire,Strip,Rod,Tube,Plate |
Alloy Type: |
High Elastic Alloy |
Raw Materials: |
NI14-16%,CR19-21%,CO39-41%,MO6.5-7.5% |
Executive Standard: |
YB/T5253-2011 ,GOST |
Delivery State: |
Cold Rolled And Cold Drawn |
Size: |
Negotiable |
Application: |
It Is Suitable For Making Elastic Elements Of Small Section And Precision Devices On Aerospace Spacecraft |

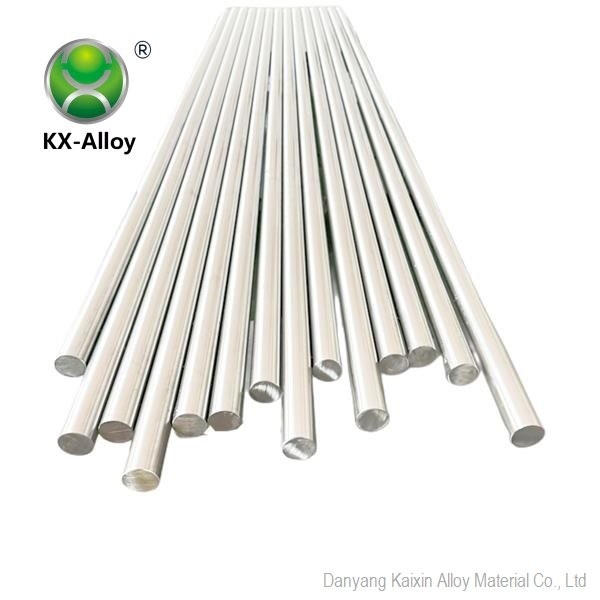

KX Co40CrNiMo Elastic Properties Strong Support Light Rod On Elastic Alloy
Product Description and Application
Co40CrNiMo is also known as 40KHNM (Russian), Elgiloy alloy, elastic alloy 3J21,AMS 5833,UNS R30003, NS604PH,K.R.N
Co40CrNiMo has good plasticity and easy to work in solid solution state. After cold working and aging treatment with large strain rate, high mechanical and elastic properties are obtained. It has high hardness, strength, elastic limit, energy storage ratio, fatigue strength, elastic lag and after-effect, non-magnetic, good wear resistance, shock resistance, excellent corrosion resistance and working temperature can be up to 400 ℃, which can also work at low temperature.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Grade | Chemical Composition(Mass Fraction)/% | |||||||||
| C | Mn | Si | P | S | Ni | Cr | Co | Mo | Fe | |
| Co40CrNiMo | 0.07-0.12 | 1.70-2.3 | ≤0.60 | ≤0.010 | ≤0.010 | 14.00-16.00 | 19.00-21.00 | 39.00-41.00 | 16.50-7.50 | Rem |
| Elasticity Modulus E(N/mm2) | 196000－215600 |
| Shear Modulus G/(/mm2) | 73500-83300 |
| Density ρ/(g/cm3) | 8.4 |
| Average Coefficient of Linear Expansion αl(10-4/℃) | 14 |
| Resistivity ρ( Ω·mm2/m) | 0.92 |
| Magnetic Susceptibility χ/10-6 | 50-1000 |
| Remark:Magnetic susceptibility x is the value in absolute electromagnetic units | |
| Product Shape | Delivery State |
Thickness or Diameter mm |
Performance Group | Mechanical Property | |
| Rm(N/mm2) | A/% | ||||
| Strip | Cold Rolled | ＞ 0.10~2.50 | A | 1176~1470 | ≧5 |
| B | 1470~1764 | ≧3 | |||
| Wire | Cold Draw | ＞ 0.10~5.00 | A | 1274~1568 | -- |
| B | 1568~1862 | -- | |||
| Bar | Cold Rolled | 12.00~22.00 | -- | 1176~1568 | ≧5 |
| Elongation after breaking is not considered for strips with thickness less than 0.2mm | |||||
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
