Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy 3J40
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests' request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80 TONS per MONTH
Features: |
High Hardness, High Strength, Corrosion Resistance And Fatigue Resistance |
Shape: |
Wire,Strip,Rod,Pipe,Plate |
Alloy Type: |
Elastic Alloy |
Raw Materials: |
NI Rem,CR39-41%,AL3.3-3.5% |
Executive Standard: |
YB/T5243, GOST |
Delivery State: |
Cold Drawn |
Application: |
It Is Used To Make Instrument Shaft Tip Alloy And Small Shaft Tip Alloy |
Size: |
Negotiable |
Features: |
High Hardness, High Strength, Corrosion Resistance And Fatigue Resistance |
Shape: |
Wire,Strip,Rod,Pipe,Plate |
Alloy Type: |
Elastic Alloy |
Raw Materials: |
NI Rem,CR39-41%,AL3.3-3.5% |
Executive Standard: |
YB/T5243, GOST |
Delivery State: |
Cold Drawn |
Application: |
It Is Used To Make Instrument Shaft Tip Alloy And Small Shaft Tip Alloy |
Size: |
Negotiable |

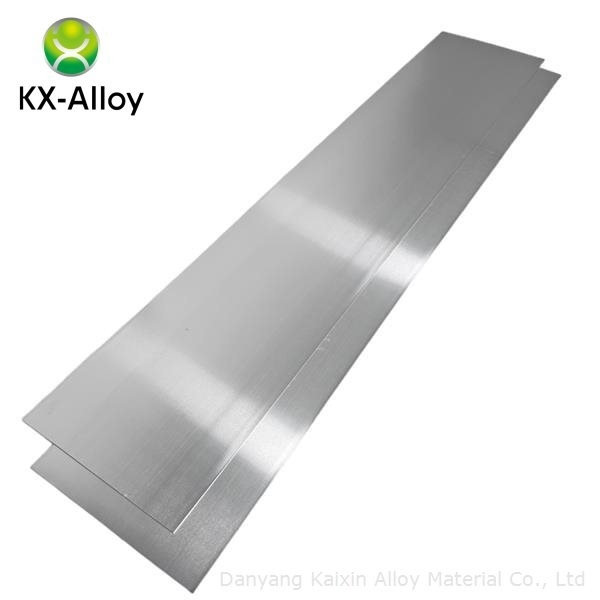

KX 0Cr40Ni55Al3 Elastic Properties Strong Support Light Rod On Elastic Alloy
Product Description and Application
0Cr40Ni55Al3 is also known as 40XHIO (Russian), 0Cr40Ni55Al3, 3J40
0Cr40Ni55Al3 is Ni-Cr-Al alloy with up to 40% chromium content. It is alloy with high hardness and strength, non-magnetic corrosion resistance and high elasticity, which belongs to precipitation-strengthened nickel based alloy, has good plasticity and easy processing in solid solution state. High mechanical and elastic properties were obtained after large strain rate cold working and aging treatment.Alloys can also be strengthened by aging after solution.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Alloy Grade | Chemical Composition (Mass Fraction)(%) | |||||||||
| C | P | S | Mn | Si | Fe | Cr | A1 | Ce① | Ni | |
| ≤ | ||||||||||
| 0Cr40Ni55Al3 | 0.03 | 0.010 | 0.010 | 0.10 | 0.20 | 0.50 | 39.0～41.0 | 3.30～3.50 | 0.10～0.2 | Rem |
| Alloy State | Salt Spray Test | Long Term Storage in the air |
| Cold draw+Solid Solution+ | 240h Non-rusting | Non-rusting |
| Alloy Grade | Vickers Hardness HV | Recommended Heat Treatment Institution |
Bend (The mandrel radius is equal to twice the alloy wire diameter) |
||
| I | Ⅱ | Ⅲ | |||
| Code Draw | 450～510 | Bend 90°, no crack or fracture outside the bend | |||
| Cold Draw+ Aging | 780～830 | >830～880 | >880 |
480～540°C Keep Warm for5h |
|
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
