Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy EX32
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests's request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80TONS per MONTH
Features: |
High Hardness And Good Processing Performance |
Shape: |

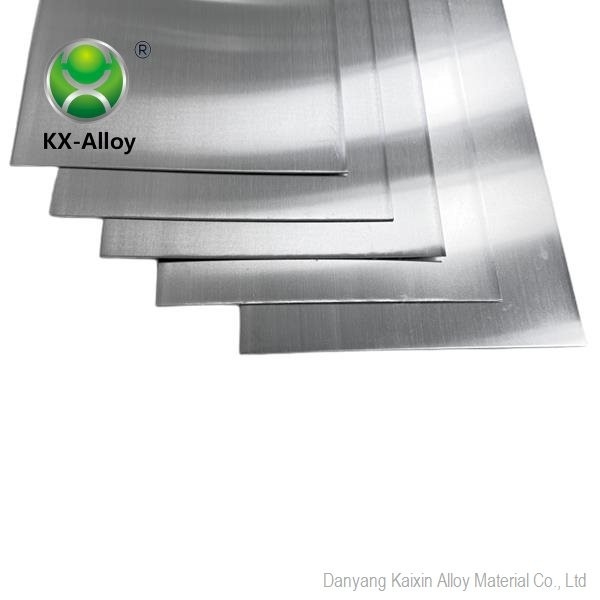

Wire,Strip,Rod,Tube,Plate |
Alloy Type: |
Low Expansion Fe-Ni-Co Alloy |
Raw Materials: |
NI31.5-33%，CO3.2-4.2%,Fe Rem |
Executive Standard: |
ASTM1684 |
Delivery State: |
Soft State |
Application: |
Produce A Variety Of Instruments, Instrument Parts, Thermal Bimetallic Passive Layer, Resonant Cavity With The Stable Size |
Size: |
Negotiable |
Features: |
High Hardness And Good Processing Performance |
Shape: |
Wire,Strip,Rod,Tube,Plate |
Alloy Type: |
Low Expansion Fe-Ni-Co Alloy |
Raw Materials: |
NI31.5-33%，CO3.2-4.2%,Fe Rem |
Executive Standard: |
ASTM1684 |
Delivery State: |
Soft State |
Application: |
Produce A Variety Of Instruments, Instrument Parts, Thermal Bimetallic Passive Layer, Resonant Cavity With The Stable Size |
Size: |
Negotiable |
Product Description and Application
Alloy32 is also also known as 4J32, Super Invar
Alloy32 alloy is called Super-Invar alloy. Its expansion coefficient is lower than 4J36 alloy in the range of -60 ~ 80℃, but its microstructure stability is worse than 4J36 alloy at low temperature. The alloy is mainly used in the manufacture of highly precise instrument parts requiring sizes within the range of ambient temperature variations.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Alloy Grade |
Chemical Composition (Mass Fraction)(%) |
|||||||||
| C | Si | P | S | Cu | Cr | Mn | Ni | Co | Fe | |
| Alloy32 | ≤ | |||||||||
| 0.05 | 0.2 | 0.02 | 0.02 | 0.40～0.80 | --- | 0.20～0.60 | 31.5～33.0 | 3.20～4.20 | Rem | |
| Alloy Grade | Sample Heat Treatment Institution |
Average Coefficient of Linear Expansion α(10-6/ K) |
|
| 20～l00℃ | 20～300°C | ||
| Alloy 32 | The semi-finished sample was heated to 840±10°C, heat preservation for 1 hour, water quenched and then the sample was processed into finished sample. At 315±l0℃ heat preservation for 1 hour with furnace cooling or air cooling | ≤1.0 | --- |
| Alloy Grade | Average Coefficient of Linear Expansion α(10-6/ K) | |||||
| 20～50℃ | 20～100℃ | 20～200℃ | 20～300℃ | 20～400℃ | 20～500℃ | |
| Alloy 32 | 0.7 | 0.8 | 1.4 | 4.3 | 7.2 | 9.3 |
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm
|
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
