Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy33
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests's request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80TONS per MONTH
Features: |
The Product Has An Expansion Coefficient Matching Sealing Similar To 95% Al2O3 In The Temperature Range Of -60℃~600℃ |
Shape: |
Wire,Strip,Rod,Tube,Plate |
Alloy Type: |
Fe-Ni-Co Ceramic Sealing Alloy |
Raw Materials: |
NI32.1-33.6%，CO14.0-15.2,Fe Rem |
Executive Standard: |
YB/T5234 |
Delivery State: |
Sosoloid |
Application: |
It Is An Important Sealing Structure Material In Electric Vacuum Industry |
Size: |
Negotiable |
Features: |
The Product Has An Expansion Coefficient Matching Sealing Similar To 95% Al2O3 In The Temperature Range Of -60℃~600℃ |
Shape: |
Wire,Strip,Rod,Tube,Plate |
Alloy Type: |
Fe-Ni-Co Ceramic Sealing Alloy |
Raw Materials: |
NI32.1-33.6%，CO14.0-15.2,Fe Rem |
Executive Standard: |
YB/T5234 |
Delivery State: |
Sosoloid |
Application: |
It Is An Important Sealing Structure Material In Electric Vacuum Industry |
Size: |
Negotiable |
Product Description and Application
4J33 is also known as Alloy 33
4J33 is constant expansion ceramic teal alloy, which is a ceramic sealing alloy developed on the basis of our ceramic characteristics. The linear expansion coefficient of the alloy is similar to that of 95%Al2O3 ceramics in the temperature range of -60℃ ~ 600℃. It is mainly used for matching sealing with ceramics,which is an important sealing structural material in electric vacuum industry.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Alloy Grade | Chemical Composition % | |||||||
| C | P | S | Mn | Si | Ni | Co | Fe | |
| Not more than | ||||||||
| 4J33 | 0.03 | 0.02 | 0.02 | 0.5 | 0.3 | 32.1～ | 14.0～ | Rem |
| Alloy Grade | Sample Heat Treatment Institution |
Average Coefficient of Linear Expansion α/(10-6/K) |
|||
| 20～300 ℃ | 20～400 ℃ | 20～500 ℃ | 20～ 600 ℃ | ||
| 4J33 | It is heated to 900±20 ℃ in a protective atmosphere or vacuum, hold for 1 hour, then cool to 200 ℃ or less at a speed of no more than 5 ℃ / min | ----- | 6.0～6.8 | 6.6～7.4 | ----- |
| Alloy Grade |
Average Linear Expansion Coefficient over Different Temperature Ranges α/(10-6/ k) |
||||
| 20～200 ℃ | 20～300 ℃ | 20～400 ℃ | 20～500 ℃ | 20～600 ℃ | |
| 4J33 | 7.1 | 6.5 | 6.3 | 7.1 | 8.5 |
Wire Tensile Strength
| State Code | State | Tensile Strength／MPa |
| R | Soft State | <585 |
| 1 | Hard State | >860 |
| State Code | State | Tensile Strength／MPa |
| R | Soft State | <570 |
| l | Hard State | >700 |
Professional Customization

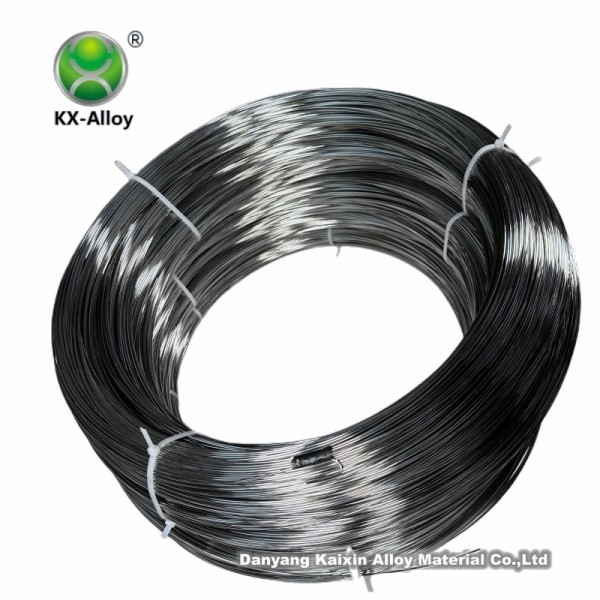

| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
