Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy47
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests's request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80TONS per MONTH
Features: |
The Linear Expansion Coefficient Is Similar To That Of Soft Glass In A Certain Range Of Temperature |
Shape: |
Wire,Strip,Rod,Tube,Plate |
Alloy Type: |
Fe-Ni-Cr Alloys |
Raw Materials: |
NI46.8-47.8%,Fe Rem |
Executive Standard: |
GB /T 37797-2019，YB/T 5235-2005 |
Delivery State: |
Soft State |
Application: |
Used For Matching And Sealing With Soft Glass On Electrical Components |
Size: |
Negotiable |
Features: |
The Linear Expansion Coefficient Is Similar To That Of Soft Glass In A Certain Range Of Temperature |
Shape: |
Wire,Strip,Rod,Tube,Plate |
Alloy Type: |
Fe-Ni-Cr Alloys |
Raw Materials: |
NI46.8-47.8%,Fe Rem |
Executive Standard: |
GB /T 37797-2019，YB/T 5235-2005 |
Delivery State: |
Soft State |
Application: |
Used For Matching And Sealing With Soft Glass On Electrical Components |
Size: |
Negotiable |
Product Description and Application
4J47 is also known as Alloy 47
4J47 has an expansion coefficient near soft glass in the temperature scale of 20 ~ 400℃, which is used for matching and sealing with the corresponding soft glass. This kind of alloy contains chromium that the alloy surface will form a very dense oxide film after oxidation treatment, then strong binding with matrix and good wettability with soft glass. Therefore, high strength sealing surfaces can be obtained, which is an important sealing structure data in electric vacuum industry.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Alloy Grade | C | P | S | Mn | Si | Al | Cr | Ni | Fe |
| 4J47 | ≤0.05 | ≤0.02 | ≤0.02 | ≤0.4 | ≤0.3 | - | 0.8～1.4 | 46.8～47.8 | Rem |
| Alloy Grade | Sample Heat Treatment Institution |
Average linear expansion coefficient α(10-6/ K) |
||
| 20-300 ℃ | 20-400 ℃ | 20-450℃ | ||
| 4J47 | It is heated to 1100±20 ℃ in vacuum or hydrogen atmosphere, held for 15min and cooled to less than 200 oC at a speed of no more than 5 ℃/ min | —— | 8.1-8.7 | —— |
| Alloy Grade |
Average Linear Expansion Coefficient α(10-6/ K) |
||||||
| 20-100℃ | 20-200℃ | 20-300℃ | 20-400℃ | 20-450℃ | 20-500℃ | 20-600℃ | |
| 4J47 | 8.1 | 8.6 | 8.3 | 8.3 | —— | 9.1 | 10 |
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |

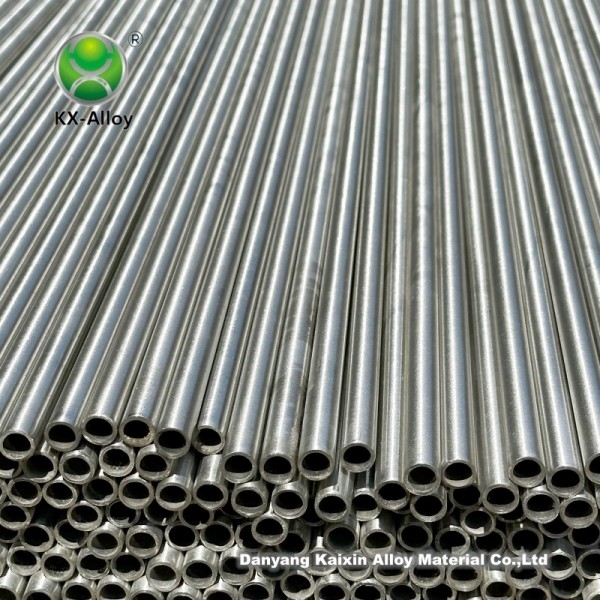

| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
