Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy404
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests' request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80 TONS per MONTH
Features: |
Corrosion Resistance |
Shape: |
Wire,Strip,Rod,Pipe,Plate |
Alloy Type: |
Ni-Cu Alloy |
Raw Materials: |
NI52-57%,CU Rem |
Executive Standard: |
ASTM |
Delivery Status: |
Sosoloid |
Application: |
Applications For Chemistry,petrochemicals And Marine Development And Etc Field |
Size: |
Negotiable |
Features: |
Corrosion Resistance |
Shape: |
Wire,Strip,Rod,Pipe,Plate |
Alloy Type: |
Ni-Cu Alloy |
Raw Materials: |
NI52-57%,CU Rem |
Executive Standard: |
ASTM |
Delivery Status: |
Sosoloid |
Application: |
Applications For Chemistry,petrochemicals And Marine Development And Etc Field |
Size: |
Negotiable |

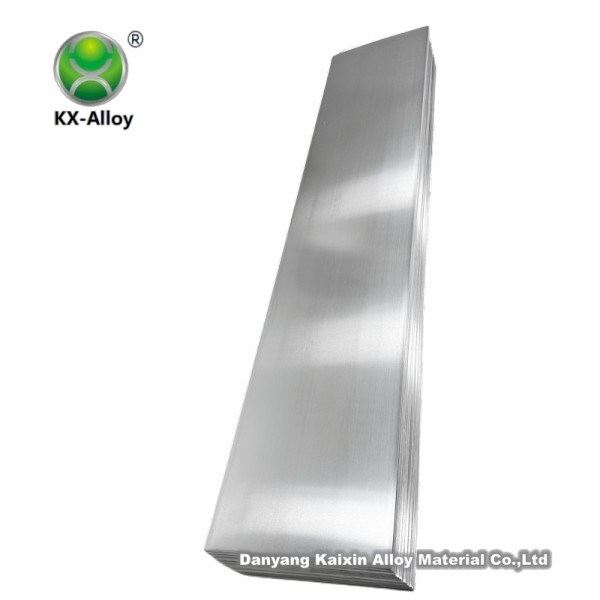

KX Monel 404 Sheet Welding Wire Strip Round Bar Light Rod Process Performance On Monel Alloy
Product Description and Application
Monel 404 is also known as UNS N04404
Monel 404 alloy is a single-phase solid solution Ni-Cu alloy, which has good corrosion resistance in many medium. From mild oxidizing medium environment to neutral environment,or to suitable reducing environment, that has good corrosion resistance, mainly used in chemistry and petrochemical industry, Marine development and etc fields. It can be used to manufacture all kinds of heat exchange equipment, boiler feed water heaters, petroleum and chemical pipelines, containers, towers, tanks, valves, pumps, reaction kettle, shaft and etc.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| % | Ni | Cu | Fe | C | Mn | Si | S |
| Min | 52.0 | Rem | |||||
| Max | 57.0 | 0.50 | 0.15 | 0.10 | 0.10 | 0.024 | 0.05 |
| Density | 8.91g/cm3 |
| Melting Point | 1300-1350℃ |
| Product Category | Heat Treatment or State |
Tensile Strength MPa |
Yield Point MPa |
Elongation after breaking % |
| Monel 404 |
Cold Drawing and Annealing Annealed at 760℃(1400°F)/1h |
≧ 468 | ≧ 172 | ≧ 50 |
ASTM B 164 (Rod, Wire), ASTM B 564 (forgings), ASTM B 127 (plate, strip), ASTM B 165 (Seamless pipe).
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm
|
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
