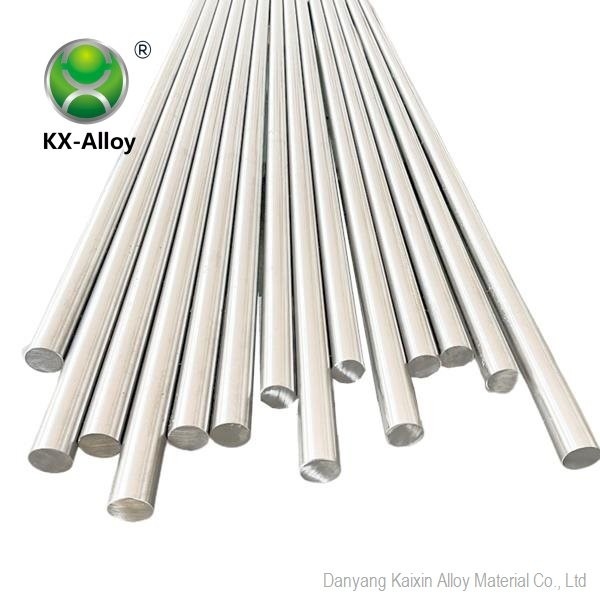

NO4400 Monel Alloy 400 Round Bar Monel 400 Plate Sheet Welding Wire Strip

Product Details

Place of Origin: China

Brand Name: KAIXIN

Certification: ISO9001:2015

Model Number: KX-Alloy MO400

Payment & Shipping Terms

Minimum Order Quantity: 200KG

Price: To negotiate

Packaging Details: Wooden Box, size as per guests' request

Delivery Time: 45~60days

Payment Terms: T/T, L/C

Supply Ability: 50~80 TONS per MONTH

Get Best Price
Highlight:

4400 monel alloy 400

,

monel alloy 400 Round Bar

,

monel 400 plate

Features:
Corrosion Resistance, High Strength And Non-magnetic
Shape:
Wire,Strip,Rod,Tube,Plate
Alloy Type:
Corrosion Resistant Alloy
Raw Materials:
Ni: ≥63%; Cu:28.0-34.0%
Executive Standard:
ASTM B164,ASTM B165,ASTM B127,ASTM B564
Delivery Status:
Sosoloid
Application:
Marine And Chemical Industry
Size:
Negotiable
Features:
Corrosion Resistance, High Strength And Non-magnetic
Shape:
Wire,Strip,Rod,Tube,Plate
Alloy Type:
Corrosion Resistant Alloy
Raw Materials:
Ni: ≥63%; Cu:28.0-34.0%
Executive Standard:
ASTM B164,ASTM B165,ASTM B127,ASTM B564
Delivery Status:
Sosoloid
Application:
Marine And Chemical Industry
Size:
Negotiable
NO4400 Monel Alloy 400 Round Bar Monel 400 Plate Sheet Welding Wire Strip

KX NO4400 Sheet Welding Wire Strip Round Bar Light Rod Process Performance On Monel Alloy



Product Description and Application



NO4400 is also known as UNS N04400,NCu30, W.N,2.4360, Alloy400, NW4400, NCU30-LC

NO4400 alloy has excellent corrosion resistance to fluorine gas, hydrochloric acid, hydrofluoric acid and their compounds. At the same time, it is more resistant to corrosion in the sea than copper-based alloys. Monel400 is resistant to corrosion in hydrochloric acid with a concentration of less than 85%. Monel400 is one of the main raw materials in hydrochloric acid. Monel400 alloy is not only corrosion-resistant, but also less porous corrosion, intergranular corrosion and so on. The corrosion rate is lower than 0.025mm/a. Monel400 in the air continuous operation temperature is generally around 600℃ and the corrosion rate is less than 0.026mm/a. in high temperature vapor.

Ammonia: Because of the high nickel composition of Monel400 alloy, it can withstand the corrosion of aqueous ammonia and ammonolysis standard below 585℃,which can manufacture all kinds of parts with complex shapes and has been widely used in aerospace, nuclear energy, petroleum industry and extrusion mold in the above temperature range.





Process Performance and Requirements



  • Product Fusion Process



 Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)



  • Product Chemical Composition



Alloy % Ni Cu Fe C Mn Si S
NO4400 Min 63 28 - - - - -
Max - 34 2.5 0.3 2 0.5 0.024



  • Product Physical Property



Density 8.83g/cm3
Fusing Temperature 1300℃~1390℃



  • Product Mechanical Property



Alloy State Monel 400
Tensile Strength (Rm N/mm2) 480
Yield Strength RP0.2N/mm2 170
Extension  A5% 35





  • Productive Process



NO4400 Monel Alloy 400 Round Bar Monel 400 Plate Sheet Welding Wire Strip 0







  • Professional Customization

Cold-drawn Wire ¢0.3~¢18mm(Delivery in rolls or trays)
Hot-Rolling Wire ¢5.5~¢20mm(Delivery in rolls)
Strip thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)
Smooth Forged Rod on a Lathe

¢60~350mm,L800-2500mm

Hot-rolled Burnishing ¢20~80mm,L1000-5000mm
Cold Drawn and Burnishing ¢2.5~18mm,L1000-8000mm
Seamless Tube ¢1~275mm,wall thickness 0.2~30,L1000-8000mm



NO4400 Monel Alloy 400 Round Bar Monel 400 Plate Sheet Welding Wire Strip 1



NO4400 Monel Alloy 400 Round Bar Monel 400 Plate Sheet Welding Wire Strip 2NO4400 Monel Alloy 400 Round Bar Monel 400 Plate Sheet Welding Wire Strip 3NO4400 Monel Alloy 400 Round Bar Monel 400 Plate Sheet Welding Wire Strip 4NO4400 Monel Alloy 400 Round Bar Monel 400 Plate Sheet Welding Wire Strip 5

NO4400 Monel Alloy 400 Round Bar Monel 400 Plate Sheet Welding Wire Strip 6
