Home > Products > Monel Alloy > UNS N04405 Monel R405 Round Bar / Welding Wire / Strip / Rod

UNS N04405 Monel R405 Round Bar / Welding Wire / Strip / Rod

Product Details

Place of Origin: China

Brand Name: KAIXIN

Certification: ISO9001:2015

Model Number: KX-Alloy405

Payment & Shipping Terms

Minimum Order Quantity: 200KG

Price: To negotiate

Packaging Details: Wooden Box, size as per guests' request

Delivery Time: 45~60days

Payment Terms: T/T, L/C

Supply Ability: 50~80 TONS per MONTH

Get Best Price
Highlight:

N04405 monel r405

,

monel r405

,

UNS alloy 400 r 405

Features:
Corrosion Resistance, High Temperature Resistance And Good Weldability
Shape:
Wire,Strip,Rod,Pipe,Plate
Alloy Type:
Nickel-copper Alloy
Raw Materials:
NI63%,CU28-34%
Executive Standard:
ASTM
Delivery Status:
Sosoloid
Application:
Heat Exchanger And Fastener
Size:
Negotiable
Features:
Corrosion Resistance, High Temperature Resistance And Good Weldability
Shape:
Wire,Strip,Rod,Pipe,Plate
Alloy Type:
Nickel-copper Alloy
Raw Materials:
NI63%,CU28-34%
Executive Standard:
ASTM
Delivery Status:
Sosoloid
Application:
Heat Exchanger And Fastener
Size:
Negotiable
UNS N04405 Monel R405 Round Bar / Welding Wire / Strip / Rod

KX Monel R405 Sheet Welding Wire Strip Round Bar Light Rod Process Performance On Monel Alloy



Product Description and Application



Monel R405 is also known as UNS N04405

Monel R405 is an easy-to-machine version of alloy Monel 400. Alloy Monel 405 adds a certain amount of sulfur, the sulfide produced in the machine has chip breaking effect, so it is suitable for automatic nut machine. Like alloy Monel 400, alloy 405 can withstand the corrosion of seawater, steam and alkaline solutions at high temperatures.Monel 405 is a solid solution and can only be hardened by cold working. The nickel-based alloy also shows excellent corrosion resistance, weldability and high strength. The alloy corrosion rate is very low in fast-moving brine solutions and seawater environments and it can withstand stress corrosion cracking well in fresh water environments. Excellent corrosion resistance makes it useful in Marine and non-oxidizing chloride solution environments.



Process Performance and Requirements



  • Product Fusion Process



 Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)



  • Product Chemical Composition



Element Composition limits, %
Ni 63.0min
Cu 28min~34max
Fe 2.5max
Mn 2.0max
C 0.3max
Si 0.5max
S 0.025min-0.060max



  • Product Physical Property



Density 8.80g/cm3(0.318 lb / in3)
Elasticity Modulus 26 000 ksi
Heating Energy 0.427 J/g-°C
Magnetism 200H(At 70 F)

Coefficient of Thermal Expansion,

in./in./ F x 106

70-200F 7.7
70 - 400 F 8.6
70 - 800 F 8.9
70 - 1000 F 9.1



  • Productive Process



UNS N04405 Monel R405 Round Bar / Welding Wire / Strip / Rod 0







  • Professional Customization

Cold-drawn Wire ¢0.3~¢18mm(Delivery in rolls or trays)
Hot-Rolling Wire ¢5.5~¢20mm(Delivery in rolls)

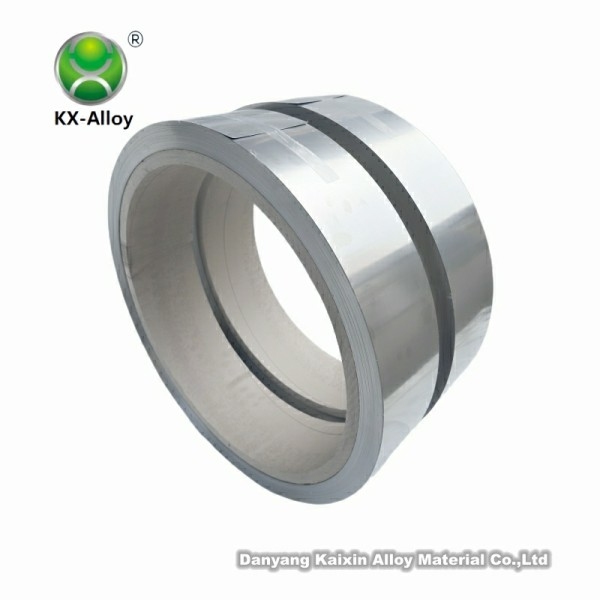

Strip thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)
Smooth Forged Rod on a Lathe

¢60~350mm,L800-2500mm

Hot-rolled Burnishing ¢20~80mm,L1000-5000mm
Cold Drawn and Burnishing ¢2.5~18mm,L1000-8000mm
Seamless Tube ¢1~275mm,wall thickness 0.2~30,L1000-8000mm
