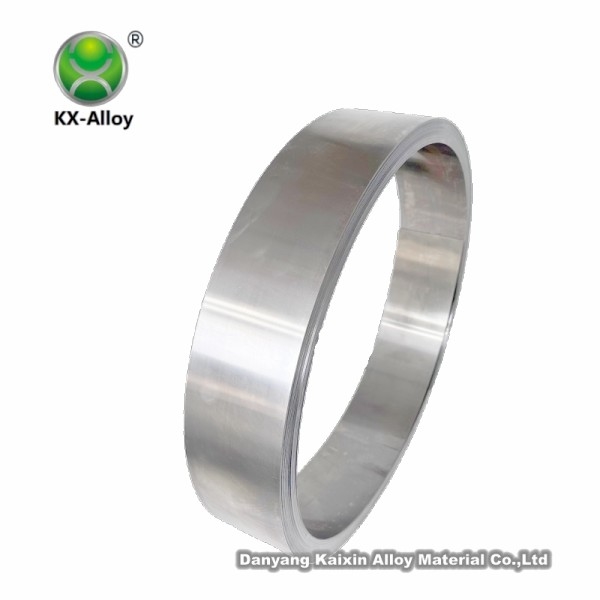

UNS N08800 High Temperature Alloy ASTM Iron Chromium And Nickel

Product Details

Place of Origin: China

Brand Name: KAIXIN

Certification: ISO9001:2015

Model Number: KX-Alloy HT800

Payment & Shipping Terms

Minimum Order Quantity: 200KG

Price: To negotiate

Packaging Details: Wooden Box, size as per guests request

Delivery Time: 45~60days

Payment Terms: T/T, L/C

Supply Ability: 50~80TONS per MONTH

Get Best Price
Highlight:

UNS N08800 High Temperature Alloy

,

High Temperature Alloy UNS N08800

,

ASTM iron chromium and nickel

Features:
A Kind Of Material Widely Used In The Equipment Construction Requiring Corrosion Resistance, Heat Resistance, Strength And Stability. Its Service Temperatures Can Be Up To 816°C, Which Has General Corrosion Resistance To Aqueous Medium.
Shape:
Wire, Strip, Rod, Tube, Plate
Alloy Type:
Nickel-iron-chromium Alloy
Raw Materials:
NI30-35%,CR19-23%
Executive Standard:
ASTM
Delivery State:
Sosoloid
Application:
Used For Petroleum, Chemical, Energy And Polysilicon
Size:
Negotiable
Features:
A Kind Of Material Widely Used In The Equipment Construction Requiring Corrosion Resistance, Heat Resistance, Strength And Stability. Its Service Temperatures Can Be Up To 816°C, Which Has General Corrosion Resistance To Aqueous Medium.
Shape:
Wire, Strip, Rod, Tube, Plate
Alloy Type:
Nickel-iron-chromium Alloy
Raw Materials:
NI30-35%,CR19-23%
Executive Standard:
ASTM
Delivery State:
Sosoloid
Application:
Used For Petroleum, Chemical, Energy And Polysilicon
Size:
Negotiable
UNS N08800 High Temperature Alloy ASTM Iron Chromium And Nickel

KX UNS N08800 Light Rod Plate Structural Operating Temperature Range For High Temperature Alloy



Product Description and Application



UNS N08800 is also known as W.N.1.4876, NCF800

UNS N08800 is mainly composed of nickel, iron and chromium. It has good high-temperature strength, corrosion resistance and machinability. N08800 is widely used in chemical industry, petroleum, heat treatment, energy and etc fields,which is used in petroleum, chemical industry, energy, heat treatment and etc high temperature, corrosive environment applications, such as petrochemical catalyst support, electric furnace heater tube, power generation boiler and etc equipment.



Process Performance and Requirements



  • Product Fusion Process



Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)



  • Product Chemical Composition



Cr Ni C Si Mn P S Fe
19.0-23.0 30.0-35.0 0.10 1.00 1.50 0.030 0.015 Rem



  • Product Physical Property



Density 7.94/cm3
Melting Point 1350-1400℃
Magnetic Energy Nil



  • Product Mechanical Property



Solid Situation

Tensile strength

σb Mpa

Yield point

σs Mpa

Elongation after breaking

δ %

Hardness

HV

1000°C 595 330 ≥40 200



  • UNS N08800 Implementation Standards



ASTM B409- Stainless Steel Hot Rolled Steel Sheet

ASTM B514- Stainless Steel Cold Rolled Steel Sheet

ASTM B515- Cold Rolled Steel Strip of Stainless Steel/Acid resistant Steel



  • Productive Process



UNS N08800 High Temperature Alloy ASTM Iron Chromium And Nickel 0





  • Professional Customization

Cold-drawn Wire ¢0.3~¢18mm(Delivery in rolls or trays)
Hot-Rolling Wire ¢5.5~¢20mm(Delivery in rolls)
Strip thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)
Smooth Forged Rod on a Lathe

¢60~350mm,L800-2500mm

Hot-rolled Burnishing ¢20~80mm,L1000-5000mm
Cold Drawn and Burnishing ¢2.5~18mm,L1000-8000mm
Seamless Tube ¢1~275mm,wall thickness 0.2~30,L1000-8000mm
