Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy Hatelloyx
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80TONS per MONTH
Features: |
Easy To Process, Medium Durability And Creep Resistance At 900℃, Good Oxidation Resistance And Corrosion Resistance |
Shape: |

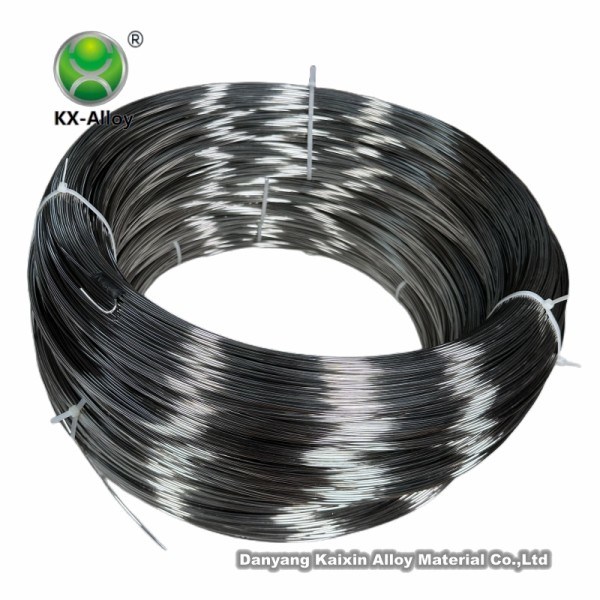

Wire, Strip, Rod, Tube, Plate |
Alloy Type: |
Nickel-chrome-molybdenum Alloy |
Raw Materials: |
NI Rem%,CR205-23.5%,MO8.0-10.0%,CO0.5-2.5% |
Executive Standard: |
ASTM，GB/T14992 |
Delivery State: |
Sosoloid |
Application: |
Suitable For Long-term Use Below 900℃ For Aero Engine Combustion Chamber And Afterburner Parts |
Size: |
Negotiable |
Features: |
Easy To Process, Medium Durability And Creep Resistance At 900℃, Good Oxidation Resistance And Corrosion Resistance |
Shape: |
Wire, Strip, Rod, Tube, Plate |
Alloy Type: |
Nickel-chrome-molybdenum Alloy |
Raw Materials: |
NI Rem%,CR205-23.5%,MO8.0-10.0%,CO0.5-2.5% |
Executive Standard: |
ASTM，GB/T14992 |
Delivery State: |
Sosoloid |
Application: |
Suitable For Long-term Use Below 900℃ For Aero Engine Combustion Chamber And Afterburner Parts |
Size: |
Negotiable |
Product Description and Application
UNS NO6002 is also known as NC22FeD, NiCr22FeMo, Nimonic PE13
UNS NO6002,GH3536 has good oxidation resistance, reducibility and neutral environment ability, which is suitable for furnaces and jet engines, that operation up to 1200℃. The alloy forms a protective and tough oxide film that will not fall off and then it maintains oxidation resistance at high temperature
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Ni | Cr | Fe | C | Mn | Si | Mo | Co | Al | W | B | P | S | |
| Min | 20.5 | 17.0 | 0.05 | 8.0 | 0.5 | 0.2 | |||||||
| Max | Rem | 23.5 | 20.0 | 0.15 | 1.0 | 1.0 | 10.0 | 2.5 | 0.1 | 1.0 | 0.005 | 0.015 | 0.01 |
| Density | 8.3g/cm3 |
| Melting Point | 1260-1355℃ |
Various welding processes can be used for welding, such as tungsten electrode inert gas welding, plasma arc welding, manual subarc welding, metal inert gas welding, melting inert gas welding. Impulse arc welding is preferred.
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
