GH132 Alloy Of Iron Nickel And Chromium Rod / Tube / Plate / Wire / Strip

Product Details

Place of Origin: China

Brand Name: KAIXIN

Certification: ISO9001:2015

Model Number: KX-Alloy286

Payment & Shipping Terms

Minimum Order Quantity: 200KG

Price: To negotiate

Packaging Details: Wooden Box, size as per guests request

Delivery Time: 45~60days

Payment Terms: T/T, L/C

Supply Ability: 50~80TONS per MONTH

Get Best Price
Highlight:

GH132 alloy of iron nickel and chromium

,

alloy of iron nickel and chromium Rod

,

iron nickel and chromium Strip

Features:
High Yield Strength, Lasting Strength And Creep Strength, Good Working Plasticity And Welding Performance
Shape:
Wire, Strip, Rod, Tube, Plate
Alloy Type:
Nickel-chrome-iron Alloy
Raw Materials:
NI24-27%,CR13.5-16%,Fe Rem
Executive Standard:
ASTM
Delivery State:
Sosoloid
Application:
Turbine Discs, Compressor Discs, Rotor Blades And Fasteners
Size:
Negotiable
Features:
High Yield Strength, Lasting Strength And Creep Strength, Good Working Plasticity And Welding Performance
Shape:
Wire, Strip, Rod, Tube, Plate
Alloy Type:
Nickel-chrome-iron Alloy
Raw Materials:
NI24-27%,CR13.5-16%,Fe Rem
Executive Standard:
ASTM
Delivery State:
Sosoloid
Application:
Turbine Discs, Compressor Discs, Rotor Blades And Fasteners
Size:
Negotiable
GH132 Alloy Of Iron Nickel And Chromium Rod / Tube / Plate / Wire / Strip

KX GH132 Light Rod Plate Structural Operating Temperature Range For High Temperature Alloy



Product Description and Application



GH132 is also knows as A286,GH2132

GH132 (Ni-Cr-Fe) is a kind of Fe-chromium-nickel based high temperature alloy, adding molybdenum, titanium, aluminum, vanadium and trace boron for strengthening, high degree of alloying, poor thermal conductivity, which is resulting in high cutting temperature, cutting force, serious work hardening, especially alloys are harder, severe wear on the tool and high cutting cost. At present, most of them are processed using carbide tools with higher required dimensional accuracy and roughness,which is using centerless grinding processing. Most of the alloy bolts and screws are formed by hot heading, while a few are formed by cold heading now. UNSS66286 has high yield strength, durability and creep strength below 650°C with good working plasticity and satisfactory welding performance. For example: high-temperature load bearing parts of aero-engines operating below 650°C for a long time, such as turbine discs.



Process Performance and Requirements



  • Product Fusion Process



Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)



  • Product Chemical Composition



Alloy % Ni Cr Mo B Fe Al Ti C Mn Si V S
GH132 Min 24 13.5 1.0 0.001

Rem

  1.75   1.0   0.10
Max 27 16 1.5 0.01   0.40 2.35 0.08 2.0 1.0 0.50 0.02



  • Product Physical Property



Density 7.93 g/cm3
Melting Point 1364-1424℃



  • Product Mechanical Property



Alloy State

Tensile Strength

Rm N/mm2

Yield Strength

RP0.2N/mm2

Percentage Elongation

A5 %

GH132 950 680 28



  • Productive Process



GH132 Alloy Of Iron Nickel And Chromium Rod / Tube / Plate / Wire / Strip 0





  • Professional Customization

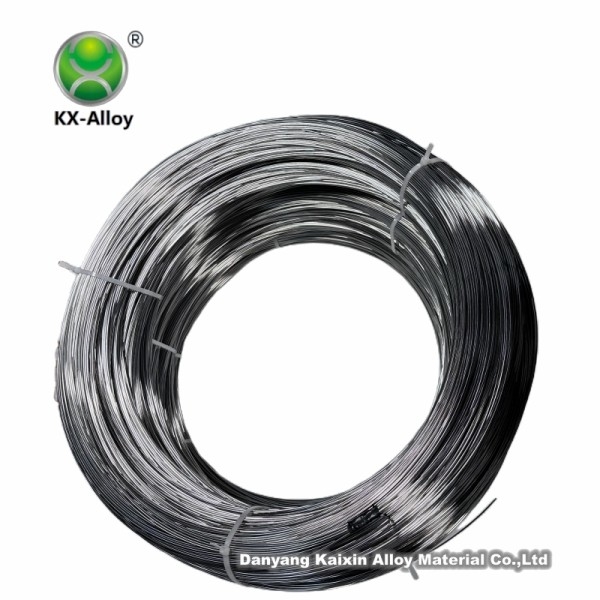

Cold-drawn Wire ¢0.3~¢18mm(Delivery in rolls or trays)
Hot-Rolling Wire ¢5.5~¢20mm(Delivery in rolls)
Strip thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)
Smooth Forged Rod on a Lathe

¢60~350mm,L800-2500mm

Hot-rolled Burnishing ¢20~80mm,L1000-5000mm
Cold Drawn and Burnishing ¢2.5~18mm,L1000-8000mm
Seamless Tube ¢1~275mm,wall thickness 0.2~30,L1000-8000mm
