Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy HT800
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80TONS per MONTH
Features: |
A Kind Of Material Widely Used In The Equipment Construction Requiring Corrosion Resistance, Heat Resistance, Strength And Stability. Its Service Temperatures Can Be Up To 816°C, Which Has General Corrosion Resistance To Aqueous Medium. |
Shape: |

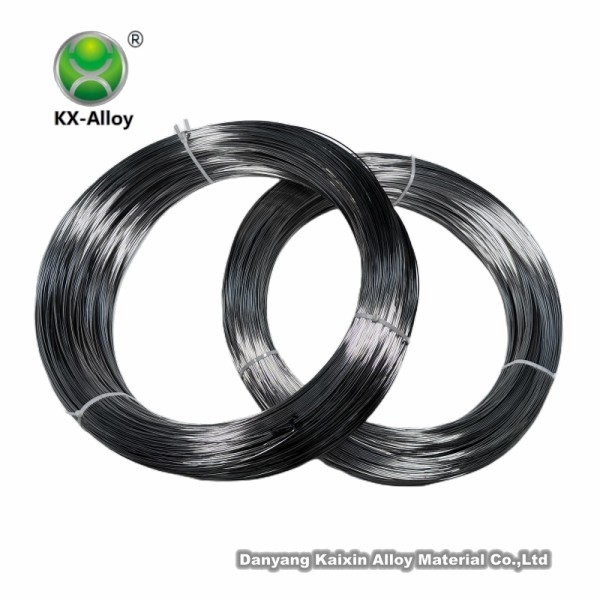

Wire, Strip, Rod, Tube, Plate |
Alloy Type: |
Nickel-iron-chromium Alloy |
Raw Materials: |
NI30-35%,CR19-23% |
Executive Standard: |
ASTM |
Delivery State: |
Sosoloid |
Application: |
Used For Petroleum, Chemical, Energy And Polysilicon |
Size: |
Negotiable |
Features: |
A Kind Of Material Widely Used In The Equipment Construction Requiring Corrosion Resistance, Heat Resistance, Strength And Stability. Its Service Temperatures Can Be Up To 816°C, Which Has General Corrosion Resistance To Aqueous Medium. |
Shape: |
Wire, Strip, Rod, Tube, Plate |
Alloy Type: |
Nickel-iron-chromium Alloy |
Raw Materials: |
NI30-35%,CR19-23% |
Executive Standard: |
ASTM |
Delivery State: |
Sosoloid |
Application: |
Used For Petroleum, Chemical, Energy And Polysilicon |
Size: |
Negotiable |
KX W.Nr.1.4876 Light Rod Plate Structural Operating Temperature Range For High Temperature Alloy
Product Description and Application
W.N.1.4876 is also known as UNS N08800, NCF800
W.N.1.4876 is mainly composed of nickel, iron and chromium. It has good high-temperature strength, corrosion resistance and machinability. W.N.1.4876 is widely used in chemical industry, petroleum, heat treatment, energy and etc fields,which is used in petroleum, chemical industry, energy, heat treatment and etc high temperature, corrosive environment applications, such as petrochemical catalyst support, electric furnace heater tube, power generation boiler and etc equipment.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Cr | Ni | C | Si | Mn | P | S | Fe |
| ≤ | |||||||
| 19.0-23.0 | 30.0-35.0 | 0.10 | 1.00 | 1.50 | 0.030 | 0.015 | Rem |
| Density | 7.94/cm3 |
| Melting Point | 1350-1400℃ |
| Magnetic Energy | Nil |
| Solid Situation |
Tensile strength σb Mpa |
Yield point σs Mpa |
Elongation after breaking δ % |
Hardness HV |
| 1000°C | 595 | 330 | ≥40 | 200 |
ASTM B409- Stainless Steel Hot Rolled Steel Sheet
ASTM B514- Stainless Steel Cold Rolled Steel Sheet
ASTM B515- Cold Rolled Steel Strip of Stainless Steel/Acid resistant Steel
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
