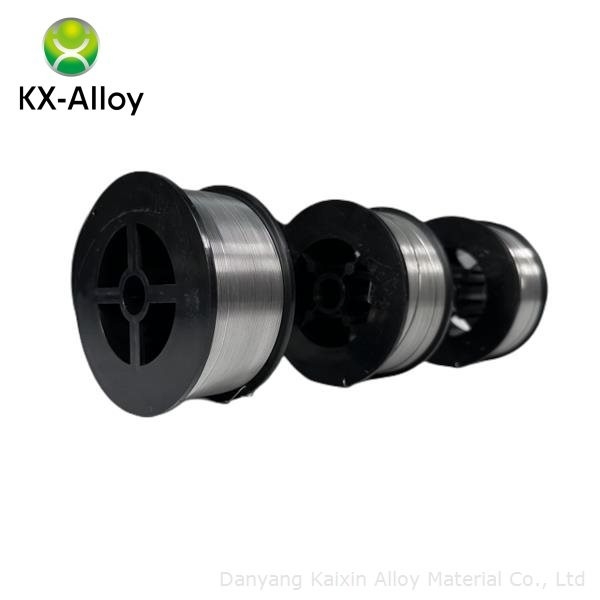

ERNiCRMo-3 Welding Wire Light Rod Nickel Alloy Welding Wire

Product Details

Place of Origin: China

Brand Name: KAIXIN

Certification: ISO9001:2015

Model Number: KX-Alloy Mo-3

Payment & Shipping Terms

Minimum Order Quantity: 200KG

Price: To negotiate

Packaging Details: Wooden Box, size as per guests request

Delivery Time: 45~60days

Payment Terms: T/T, L/C

Supply Ability: 50~80TONS PER MONTH

Get Best Price
Highlight:

ernicrmo 3 welding wire

,

ernicrmo 3 welding wire

,

oxidation resistance ernicrmo 3

Features:
Good Corrosion Resistance, Oxidation Resistance, High Creep Strength, Stable Arc, Beautiful Forming, Good Flow Of Molten Iron, Excellent Welding Technological Properties
Alloy Type:
Nickel-based Alloy
Delivery State:
Sosoloid
Size:
Negotiable
Shape:
Parcel Wire, Coiling Wire, Vertical Bar
Raw Materials:
NI≤58%,CR20-23%,Nb+Ta3.15-4.15%
Executive Standard:
GB/T15620 SNi6082 AWS A5.14 ERNiCr-3 EN ISO18274:S Ni 6082
Application:
Petrochemical Industry
Features:
Good Corrosion Resistance, Oxidation Resistance, High Creep Strength, Stable Arc, Beautiful Forming, Good Flow Of Molten Iron, Excellent Welding Technological Properties
Alloy Type:
Nickel-based Alloy
Delivery State:
Sosoloid
Size:
Negotiable
Shape:
Parcel Wire, Coiling Wire, Vertical Bar
Raw Materials:
NI≤58%,CR20-23%,Nb+Ta3.15-4.15%
Executive Standard:
GB/T15620 SNi6082 AWS A5.14 ERNiCr-3 EN ISO18274:S Ni 6082
Application:
Petrochemical Industry
ERNiCRMo-3 Welding Wire Light Rod Nickel Alloy Welding Wire

KX ERNiCRMo-3 Welding Wire Light Rod on Nickel Based Welding Wire Alloy



Product Description and Application



The ERNiCRMo-3 is also known as the SNI6625, NiCr22Mo9Nb

ERNiCRMo-3 is a corrosion-resistant nickel - based welding wire. It is used for petroleum pipeline, valve surfacing, waste incineration and etc. Weld metal has good impact strength and high brittleness resistance, which is suitable for welding of dissimilar steel and its working temperature is 450-550 °C. It is also suitable for high temperature and even high humidity corrosive environment exposure. ERNiCRMo-3 and nickel-based composite welding alloys are supplied with welding rod and wires in standard length or as required by customers.





Process Performance and Requirements



  • Product Fusion Process



Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)



  • Product Chemical Composition



C Mn Fe P S Si Cu Ni Al Ti Cr Nb+Ta Mo Other
0.1 0.5 5.0 0.02 0.015 0.5 58 0.4 0.4 0.4 20.0-23.0 3.15-4.15 8.0-10.0 0.5



  • Product Physical Property



Density 8.44kg/m3
Melting point 1290-1350℃
Magnetic Property Nil



  • Other Technical Requirements



          Welding Wire Diameter and Allowable Deviation



Package Welding Wire diameter Allowable Deviation
vertical bar

1.6,1..8,2.0,2.4,2.5,2.8,3.0,3.2,

4.0,4.8,5.0,6.0,6.4

±0.1
Welding wire coil

+0.01

-0.04

Wire Reel

Diameter 100mm and 200mm

0.8,0.9,1.0,1.2,1.4,1.6

Wire Reel

Diameter 270mm and 300mm

0.5,0.8,0.9,1.0,1.2,1.4,1.6,2.0,

2.4,2.5,2.8,3.0,3.2

Welding wire can be produced in other sizes, deviations and package as agreed by both parties
Allowable deviation of ±0.1 diameter when used for hand-filled wire



          Welding Wire Loose Diameter and Warp Pitch

Diameter of Wire Reel 100 200 270,300
Loose Diameter 60~380 250~890 380~1300
Warp Pitch ≤13 ≤19 ≤25



  • Productive Process



ERNiCRMo-3 Welding Wire Light Rod Nickel Alloy Welding Wire 0



  • Professional Customization

Cold-drawn Wire ¢0.3~¢18mm(Delivery in rolls or trays)
Hot-Rolling Wire ¢5.5~¢20mm(Delivery in rolls)
Strip thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)
Smooth Forged Rod on a Lathe

¢60~350mm,L800-2500mm

Hot-rolled Burnishing ¢20~80mm,L1000-5000mm
Cold Drawn and Burnishing ¢2.5~18mm,L1000-8000mm
Seamless Tube ¢1~275mm,wall thickness 0.2~30,L1000-8000mm
