Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy Cr-2
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80TONS PER MONTH
Features: |
Good Corrosion Resistance, Oxidation Resistance, High Creep Strength, Stable Arc, Beautiful Forming, Good Flow Of Molten Iron And Excellent Welding Performance. |
Alloy Type: |
Nickel-based Alloy |
Delivery State: |
Sosoloid |
Size: |
Negotiable |
Shape: |
Parcel Wire, Vertical Bar |
Raw Materials: |
NI50-55,CR17-21%,Nb+Ta4.75-5.5%,MO2.8-3.3% |
Executive Standard: |
GB/T15620-2008，AWS A5.14:2005 |
Application: |
Used For Welding INCONEL X750, Inconel 718 And Etc. Widely Also Be Applied To High Strength Aero Engine Parts, Ultra-low Temperature Liquid Fuel Rocket Parts And Etc. |
Features: |
Good Corrosion Resistance, Oxidation Resistance, High Creep Strength, Stable Arc, Beautiful Forming, Good Flow Of Molten Iron And Excellent Welding Performance. |
Alloy Type: |
Nickel-based Alloy |
Delivery State: |
Sosoloid |
Size: |
Negotiable |
Shape: |
Parcel Wire, Vertical Bar |
Raw Materials: |
NI50-55,CR17-21%,Nb+Ta4.75-5.5%,MO2.8-3.3% |
Executive Standard: |
GB/T15620-2008，AWS A5.14:2005 |
Application: |
Used For Welding INCONEL X750, Inconel 718 And Etc. Widely Also Be Applied To High Strength Aero Engine Parts, Ultra-low Temperature Liquid Fuel Rocket Parts And Etc. |

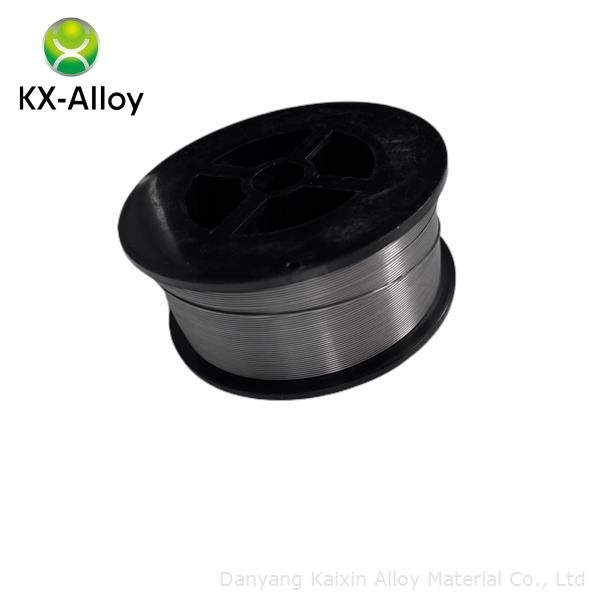

KX ERNiFeCr-2 Welding Wire Light Rod on Nickel Based Welding Wire Alloy
Product Description and Application
ERNiFeCr-2 is known as NO7718, SNi7718, NiFe19Cr19NbMo3
ERNiFeCr-2, a precipitate-hardened Ni-chromium alloy containing niobium and molybdenum, has high strength, good toughness and corrosion resistance at high and low temperatures at 700℃. The supply state may be solution treatment or precipitation hardening state. Used for welding INCONEL X750, alloy 718, 706, etc., used in high strength aero engine parts, ultra-low temperature liquid fuel rocket parts, etc.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| C | Mn | Fe | Si | Cu | Nia | Al | Ti | Cr | Nbb | Mo | W | Othersc |
| ≤0.08 | ≤0.3 | ≤24 | ≤0.3 | ≤0.3 | ≥50-55 | ≤0.2-0.8 | 0.7-1.1 | 17-21 | 4.8-5.5 | 2.8-3.3 | - | B:0.006P:0.015 |
| Density | ρ=8.24g/cm3 |
| Melting Temperature | 1260~1320℃ |
Other Technical Requirements
Welding Wire Diameter and Allowable Deviation
| Package | Welding Wire Diameter | Allowable Deviation |
| Vertical Bar |
1.6,1..8,2.0,2.4,2.5,2.8,3.0,3.2, 4.0,4.8,5.0,6.0,6.4 |
±0.1 |
| Welding Wire Coil |
+0.01 -0.04 |
|
|
Wire Reel Diameter 100mm and 200mm |
0.8,0.9,1.0,1.2,1.4,1.6 | |
|
Wire Reel Diameter 270mm and 300mm |
0.5,0.8,0.9,1.0,1.2,1.4,1.6,2.0, 2.4,2.5,2.8,3.0,3.2 |
|
| Welding wire can be produced in other sizes, deviations and package as agreed by both parties | ||
|
Allowable deviation of ±0.1 diameter when used for hand-filled wire |
||
Welding Wire Loose Diameter and Warp Pitch
| Diameter of Wire Reel | 100 | 200 | 270,300 |
| Loose Diameter | 60~380 | 250~890 | 380~1300 |
| Warp Pitch | ≤13 | ≤19 | ≤25 |
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
