Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy55
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80TONS PER MONTH
Features: |
Good Corrosion Resistance, Oxidation Resistance, High Creep Strength, Stable Arc, Beautiful Forming, Good Flow Of Molten Iron And Excellent Welding Performance. |
Alloy Type: |
Iron Nickel Welding Wire |
Delivery State: |
Sosoloid |
Size: |
Negotiable |
Shape: |
Parcel Wire, Vertical Bar |
Raw Materials: |
NI≥54-56%,Fe Rem |
Executive Standard: |
ASTM,GB |
Application: |
Used For Cast Iron Resurfacing Welding |
Features: |
Good Corrosion Resistance, Oxidation Resistance, High Creep Strength, Stable Arc, Beautiful Forming, Good Flow Of Molten Iron And Excellent Welding Performance. |
Alloy Type: |
Iron Nickel Welding Wire |
Delivery State: |
Sosoloid |
Size: |
Negotiable |
Shape: |
Parcel Wire, Vertical Bar |
Raw Materials: |
NI≥54-56%,Fe Rem |
Executive Standard: |
ASTM,GB |
Application: |
Used For Cast Iron Resurfacing Welding |

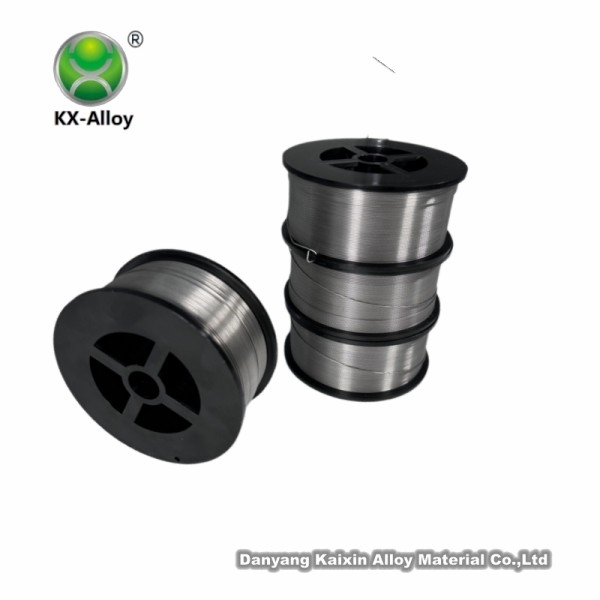

KX NiFe55 Welding Wire Light Rod on Nickel Based Welding Wire Alloy
Product Description and Application
It has good mechanical properties, good corrosion resistance, oxidation resistance, high creep strength, stable arc, beautiful forming, good flow of molten iron and excellent welding process performance, which is mainly used for manufacturing cast iron welding rods
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Grade | C | P | S | Mn | Si | Ni | Al | Cr | Fe |
| ≤ | |||||||||
| NiFe55 | 0.10 | 0.020 | 0.020 | 0.40 | 0.50 | 54.0-56.0 | / | / | Rem |
Other Technical Requirements
Welding Wire Diameter and Allowable Deviation
| Package | Welding Wire Diameter | Allowable Deviation |
| Vertical Bar |
1.6,1..8,2.0,2.4,2.5,2.8,3.0,3.2, 4.0,4.8,5.0,6.0,6.4 |
±0.1 |
| Welding Wire Coil |
+0.01 -0.04 |
|
|
Wire Reel Diameter 100mm and 200mm |
0.8,0.9,1.0,1.2,1.4,1.6 | |
|
Wire Reel Diameter 270mm and 300mm |
0.5,0.8,0.9,1.0,1.2,1.4,1.6,2.0, 2.4,2.5,2.8,3.0,3.2 |
|
| Welding wire can be produced in other sizes, deviations and package as agreed by both parties | ||
|
Allowable deviation of ±0.1 diameter when used for hand-filled wire |
||
Welding Wire Loose Diameter and Warp Pitch
| Diameter of Wire Reel | 100 | 200 | 270,300 |
| Loose Diameter | 60~380 | 250~890 | 380~1300 |
| Warp Pitch | ≤13 | ≤19 | ≤25 |
Productive Process
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
