Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy INC800
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests' request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80 TONS PER MONTH
Features: |
High Temperature And Corrosion Resistance |
Shape: |
Wire,Strip,Rod,Tube, Plate |
Alloy Type: |
Nickel-iron-chromium Alloy |
Raw Materials: |
NI30-35%,CR19-23% |
Executive Standard: |
ASTM |
Delivery State: |
Sosoloid |
Application: |
Chemical Industry, Nuclear Generator, Nitric Acid Cooler, Acetic Anhydride Cracking Tube, Heat Exchange Equipment, Heat Exchange Tube |
Size: |
Negotiable |
Alloy: |
Incoloy800 |
CorrosionResistance: |
Good |
Density: |
7.81g/cm3 |
ElectricalResistivity: |
0.75-1.2μΩm |
Elongation: |
25-30% |
Hardness: |
HB180-220 |
MagneticPermeability: |
1.02-1.03 |
MeltingPoint: |
1350-1400°C |
ModulusOfElasticity: |
200-210GPa |
TensileStrength: |
550-800MPa |
ThermalConductivity: |
14-20W/m-K |
ThermalExpansion: |
13-15μm/m-K |
Weldability: |
Good |
YieldStrength: |
300-500MPa |
Features: |
High Temperature And Corrosion Resistance |
Shape: |
Wire,Strip,Rod,Tube, Plate |
Alloy Type: |
Nickel-iron-chromium Alloy |
Raw Materials: |
NI30-35%,CR19-23% |
Executive Standard: |
ASTM |
Delivery State: |
Sosoloid |
Application: |
Chemical Industry, Nuclear Generator, Nitric Acid Cooler, Acetic Anhydride Cracking Tube, Heat Exchange Equipment, Heat Exchange Tube |
Size: |
Negotiable |
Alloy: |
Incoloy800 |
CorrosionResistance: |
Good |
Density: |
7.81g/cm3 |
ElectricalResistivity: |
0.75-1.2μΩm |
Elongation: |
25-30% |
Hardness: |
HB180-220 |
MagneticPermeability: |
1.02-1.03 |
MeltingPoint: |
1350-1400°C |
ModulusOfElasticity: |
200-210GPa |
TensileStrength: |
550-800MPa |
ThermalConductivity: |
14-20W/m-K |
ThermalExpansion: |
13-15μm/m-K |
Weldability: |
Good |
YieldStrength: |
300-500MPa |
KX Incoloy 800, Nickel Alloy 800
Product Description and Application
Incoloy800 is also known as Alloy 800, Incoloy 800H, Incoloy 800HT 800. Alloy 800, Incoloy 800 H and Incoloy 800HT. 800 alloys typically contain 15% to 25% chromium, 30% to 45% nickel, small number of aluminum and titanium. From high temperature by rapid cooling, it is in the single austenite zone, so its service state is single austenite structure. It has more chromium and sufficient nickel, so it has higher temperature corrosion resistance, which is widely used in industry. In an aqueous solution of chloride, low concentration of NaOH and high temperature & pressure water, it has excellent resistance to stress corrosion cracking, so used in the manufacture of equipment resistant to stress corrosion cracking.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Cr | Ni | C | Si | Mn | P | S | Fe |
| ≤ | |||||||
| 19.0-23.0 | 30.0-35.0 | 0.10 | 1.00 | 1.50 | 0.030 | 0.015 | Rem |
| Density | 8.0/cm3 |
| Specific Heat Capacity | 455J/(kg·℃) |
| Magnetic Property | Nil |
| fusing temperature | 1350℃~1400℃ |
| Temperature,°F | 70 | 1000 | 1200 | 1400 | 1600 | 1800 |
| Tensile Strength,ksi | 77 | 63.5 | 55.7 | 32.3 | 18.6 | 10.2 |
| 0.2% Deformation Yield Strength,ksi | 29 | 16.5 | 14.8 | 14.4 | 11.6 | 8.9 |
| Extend Rate,% | 52 | 51 | 50 | 78 | 120 | 120 |
Product Heat Treatment Institution
Atmospheric heat treatment furnace, 1020-1050 ℃, heat preservation for one hour, water cooling
Professional Customization

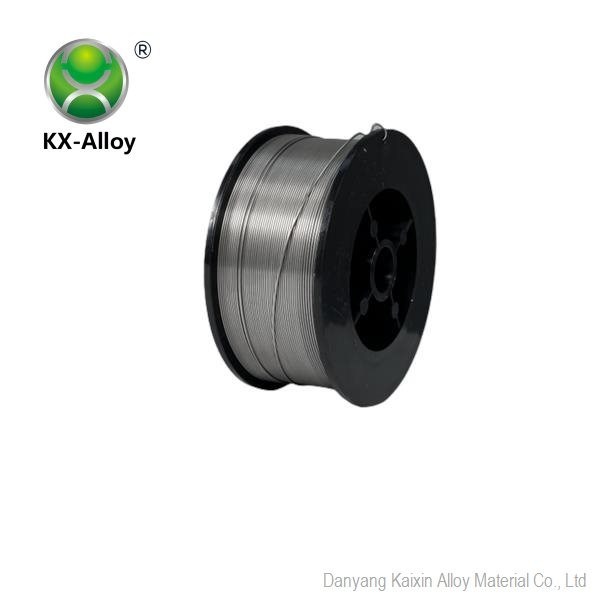

| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm
|
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
SUPPORT FAQ
1. Who are we?
Danyang Kaixin Alloy Materials Co., Ltd. is a production-oriented enterprise specializing in the independent production and research and development of high-performance alloy materials such as precision alloys and high-temperature alloys for more than 16 years.
2. How can we guarantee the quality?
We have our own production and inspection equipment, and the functional departments have a clear division of labor;
We have passed ISO9001:2015 quality management system;
3. What can you buy from us?(Bulk products)
Inconel718, Inconel X-750, Inconel625, Inconel751,Incoloy800,Incoloy825
Hastelloy C276, HatelloyX, Nimonic80A,
Kovar,Invar,Alloy42,
ERNiCrMo-3, ERNiCrMo-4, NiFe55, NiFe60, ERNiCr-3, ERNiCu-7,ERNiCrFe-1
It is produced in accordance with ASTM, GOST, GB/T standard materials, among which Inconel625 welding wire has obtained ABS certification.
4. Why should you buy from us instead of other suppliers?
①We are the source factory with production and testing capabilities
②We have passed the ISO9001:2015 quality management system standard, and the process is controllable
