Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy825
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests' request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80 TONS PER MONTH
Shape: |
Tube,Pipe |
Alloy Type: |
Nickel-iron-chromium-molybdenum-copper Alloy |
Raw Materials: |
NI38-46%,CR19.5-23.5% |
Executive Standard: |
ASTM |
Delivery State: |
Sosoloid |
Application: |
Chemical Containers, Valves, Phosphoric Acid Production |
Chemical Composition: |
Nickel-iron-chromium Alloy |
Corrosion Resistance: |
Excellent |
Density: |
8.14 G/cm³ |
Elongation: |
30-40% |
Hardness: |
200-300 HB |
Material: |
Incoloy Alloy |
Melting Point: |
1411-1446°C |
Modulus Of Elasticity: |
193 GPa |
Thermal Conductivity: |
14.2 W/m-K |
Weldability: |
Good |
Size: |
Negotiable |
Name: |
Incoloy 825，UNS N08825，W.NS.2.4858 |
Shape: |
Tube,Pipe |
Alloy Type: |
Nickel-iron-chromium-molybdenum-copper Alloy |
Raw Materials: |
NI38-46%,CR19.5-23.5% |
Executive Standard: |
ASTM |
Delivery State: |
Sosoloid |
Application: |
Chemical Containers, Valves, Phosphoric Acid Production |
Chemical Composition: |
Nickel-iron-chromium Alloy |
Corrosion Resistance: |
Excellent |
Density: |
8.14 G/cm³ |
Elongation: |
30-40% |
Hardness: |
200-300 HB |
Material: |
Incoloy Alloy |
Melting Point: |
1411-1446°C |
Modulus Of Elasticity: |
193 GPa |
Thermal Conductivity: |
14.2 W/m-K |
Weldability: |
Good |
Size: |
Negotiable |
Name: |
Incoloy 825，UNS N08825，W.NS.2.4858 |

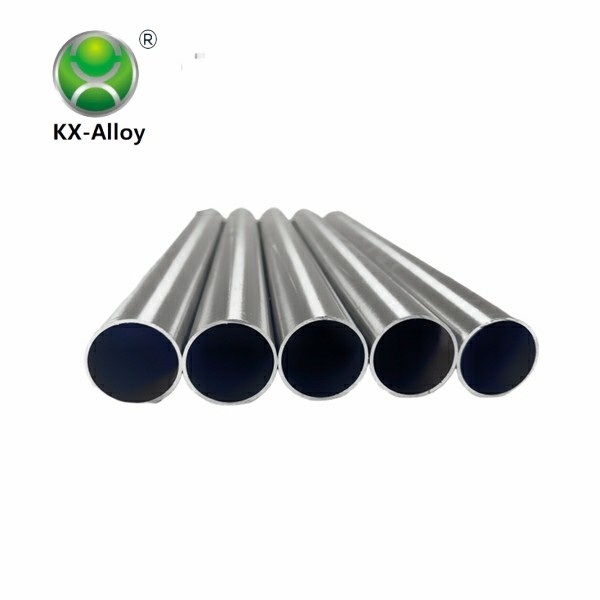

KX Incoloy825( alloy 825)ASTM Seamless Pipe
Product Description and Application
Incoloy825 is also known as NS142, UNS N08825, W.NS.2.4858
incoloy825 is a whole austenitic Ni-Cr alloy with iron stabilization treatment, which has good stress corrosion cracking resistance and resistance to spot and seam corrosion, good oxidation resistance and non-oxidation thermal acidity, excellent mechanical properties at room temperature and high temperatures up to 550°C. It is certified to manufacture pressure vessels when up to 450°C. It is widely used in various industrial fields where the temperature does not exceed 550°C. Typical applications are heating tubes, containers, tubes and chains used in sulfuric acid pickling factories, seawater cooling heat exchanger, Marine product pipeline system, acid gas environment pipeline, heat exchanger in phosphoric acid production, evaporator, washing, impregnation pipe and etc., air heat exchanger in petroleum refining, food engineering, chemical process, flame retardant alloy for high-pressure oxygen applications.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Alloy | Ni | Cr | Fe | C | Mn | Si | Mo | Cu | Co | Al | Ti |
| Incoloy 825 | 38-46 | 19.5-23.5 | Rem | ≤0.025 | ≤1.0 | ≤0.5 | 2.5-3.5 | 1.5-3.0 | ≤1.0 | ≤0.2 | 0.6-1.2 |
| Density | p=8.1g/cm3 |
| Melting Temperature Range | 1370~1400°C |
Mechanical Properties at Room Temperature(Min)
| Product | Specification | Yield Strength | Yield Strength | Tensile Strength | Percentage Elongation |
Sheet Strop/Cold Rolled | 0.5-6.4 | 240 | 265 | 585 | 30 |
| 5-100 | |||||
Rod | 1.6-64 | ||||
| 25-100 | |||||
| ＞100-240 | 220 | 250 | 550 | 35 | |
Pipe | 64-240 | 180 | --- | 530 | 30 |
| 5-100 | 240 | 265 | 585 | 30 | |
| Condensation and Heat Exchanger | 16-76 |
Mechanical Properties at High Temperature(Min)
| Product | Yield Strength RP0.2N/mm2 | Yield Strength RP1.0N/mm2 | ||||||||
| Temperature | 100 | 200 | 300 | 400 | 450 | 100 | 200 | 300 | 400 | 450 |
| Plate/Strip/Tube | 205 | 180 | 170 | 160 | 155 | 235 | 205 | 195 | 185 | 180 |
| Rod | 190 | 165 | 155 | 145 | 140 | 220 | 190 | 180 | 170 | 165 |
Notes:
Tensile testing shall be carried out in accordance with ASTM A370 or EN10002-1
Minimum properties quoted (tested at room temperature in a longitudinal direction)
Testing performed on each melt of material per heat treatment batch
