Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy825
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests' request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80 TONS PER MONTH
Shape: |
Wire,Strip,Rod,Pipe,Plate |
Alloy Type: |
Nickel-iron-chromium-molybdenum-copper Alloy |
Raw Materials: |
NI38-46%,CR19.5-23.5% |
Executive Standard: |
ASTM |
Delivery State: |
Sosoloid |
Application: |
Chemical Containers, Valves, Phosphoric Acid Production |
Chemical Composition: |
Nickel-iron-chromium Alloy |
Corrosion Resistance: |
Excellent |
Density: |
8.14 G/cm³ |
Elongation: |
30-40% |
Hardness: |
200-300 HB |
Material: |
Incoloy Alloy |
Melting Point: |
1411-1446°C |
Modulus Of Elasticity: |
193 GPa |
Thermal Conductivity: |
14.2 W/m-K |
Weldability: |
Good |
Size: |
Negotiable |
Name: |
Incoloy 825，UNS N08825，W.NS.2.4858 |
Shape: |
Wire,Strip,Rod,Pipe,Plate |
Alloy Type: |
Nickel-iron-chromium-molybdenum-copper Alloy |
Raw Materials: |
NI38-46%,CR19.5-23.5% |
Executive Standard: |
ASTM |
Delivery State: |
Sosoloid |
Application: |
Chemical Containers, Valves, Phosphoric Acid Production |
Chemical Composition: |
Nickel-iron-chromium Alloy |
Corrosion Resistance: |
Excellent |
Density: |
8.14 G/cm³ |
Elongation: |
30-40% |
Hardness: |
200-300 HB |
Material: |
Incoloy Alloy |
Melting Point: |
1411-1446°C |
Modulus Of Elasticity: |
193 GPa |
Thermal Conductivity: |
14.2 W/m-K |
Weldability: |
Good |
Size: |
Negotiable |
Name: |
Incoloy 825，UNS N08825，W.NS.2.4858 |

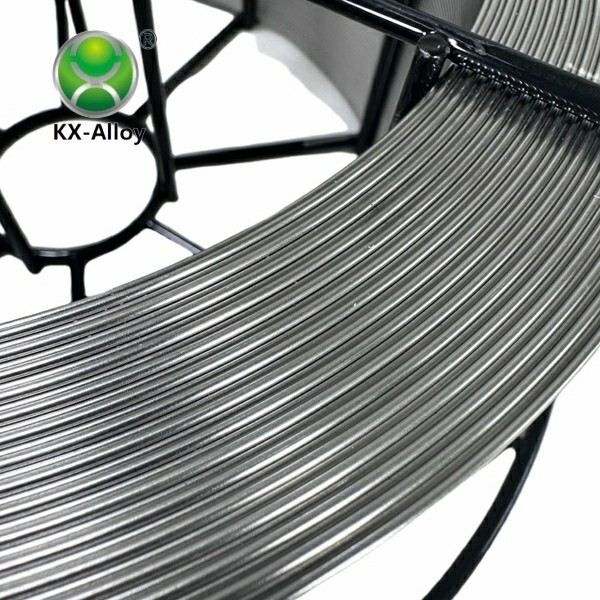

Corrosion And Oxidation Resistance ERNiCrFe-1 Incoloy825 Welding Wire MIG Accepts Customized Requirements
KX Incoloy825(ERNiCrFe-1)ASTM Seamless Pipe
Product Description and Application
ERNiCrFe-1 is also known as NS142, UNS N08825, W.NS.2.4858,Incoloy 825
incoloy825 is a whole austenitic Ni-Cr alloy with iron stabilization treatment, which has good stress corrosion cracking resistance and resistance to spot and seam corrosion, good oxidation resistance and non-oxidation thermal acidity, excellent mechanical properties at room temperature and high temperatures up to 550°C. It is certified to manufacture pressure vessels when up to 450°C. It is widely used in various industrial fields where the temperature does not exceed 550°C. Typical applications are heating tubes, containers, tubes and chains used in sulfuric acid pickling factories, seawater cooling heat exchanger, Marine product pipeline system, acid gas environment pipeline, heat exchanger in phosphoric acid production, evaporator, washing, impregnation pipe and etc., air heat exchanger in petroleum refining, food engineering, chemical process, flame retardant alloy for high-pressure oxygen applications.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Alloy | Ni | Cr | Fe | C | Mn | Si | Mo | Cu | Co | Al | Ti |
| ERNiCrFe-1 | 38-46 | 19.5-23.5 | Rem | ≤0.05 | ≤1.0 | ≤0.5 | 2.5-3.5 | 1.5-3.0 | ≤1.0 | ≤0.2 | 0.6-1.2 |
| Density | p=8.1g/cm3 |
| Melting Temperature Range | 1370~1400°C |
Mechanical Properties at Room Temperature(Min)
| Product | Specification |
Yield Strength |
Yield Strength |
Tensile Strength |
Percentage Elongation |
|
Sheet Strop/Cold Rolled |
0.5-6.4 | 240 | 265 | 585 | 30 |
| 5-100 | |||||
|
Rod |
1.6-64 | ||||
| 25-100 | |||||
| ＞100-240 | 220 | 250 | 550 | 35 | |
|
Pipe |
64-240 | 180 | --- | 530 | 30 |
| 5-100 | 240 | 265 | 585 | 30 | |
| Condensation and Heat Exchanger | 16-76 |
Mechanical Properties at High Temperature(Min)
| Product | Yield Strength RP0.2N/mm2 | Yield Strength RP1.0N/mm2 | ||||||||
| Temperature | 100 | 200 | 300 | 400 | 450 | 100 | 200 | 300 | 400 | 450 |
| Plate/Strip/Tube | 205 | 180 | 170 | 160 | 155 | 235 | 205 | 195 | 185 | 180 |
| Rod | 190 | 165 | 155 | 145 | 140 | 220 | 190 | 180 | 170 | 165 |
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
SUPPORT FAQ
1. Who are we?
Danyang Kaixin Alloy Materials Co., Ltd. is a production-oriented enterprise specializing in the independent production and research and development of high-performance alloy materials such as precision alloys and high-temperature alloys for more than 16 years.
2. How can we guarantee the quality?
We have our own production and inspection equipment, and the functional departments have a clear division of labor;
We have passed ISO9001:2015 quality management system;
3. What can you buy from us?
Inconel718, Inconel X-750, Inconel625, Inconel751,
Hastelloy C276, HatelloyX, Nimonic80A,
Kovar,Invar,Alloy42,
ERNiCrMo-3, ERNiCrMo-4, NiFe55, NiFe60, ERNiCr-3, ERNiCu-7
It is produced in accordance with ASTM, GOST, GB/T standard materials, among which Inconel625 welding wire has obtained ABS certification.
4. Why should you buy from us instead of other suppliers?
①We are the source factory with production and testing capabilities
②We have passed the ISO9001:2015 quality management system standard, and the process is controllable
