Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy800H
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests' request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80 TONS PER MONTH
Features: |
High Temperature Resistance And Corrosion Resistance |
Shape: |
Wire,Strip,Rod,Tube, Plate |
Alloy Type: |
Iron Nickel Based Alloy |
Raw Materials: |
NI30-35%,CR19-23% |
Executive Standard: |
ASTM |
Delivery State: |
Sosoloid |
Application: |
Chemical Industry, Nuclear Generator, Nitric Acid Cooler, Acetic Anhydride Cracking Tube, Heat Exchange Equipment, Heat Exchange Tube |
Size: |
Negotiable |
Features: |
High Temperature Resistance And Corrosion Resistance |
Shape: |
Wire,Strip,Rod,Tube, Plate |
Alloy Type: |
Iron Nickel Based Alloy |
Raw Materials: |
NI30-35%,CR19-23% |
Executive Standard: |
ASTM |
Delivery State: |
Sosoloid |
Application: |
Chemical Industry, Nuclear Generator, Nitric Acid Cooler, Acetic Anhydride Cracking Tube, Heat Exchange Equipment, Heat Exchange Tube |
Size: |
Negotiable |

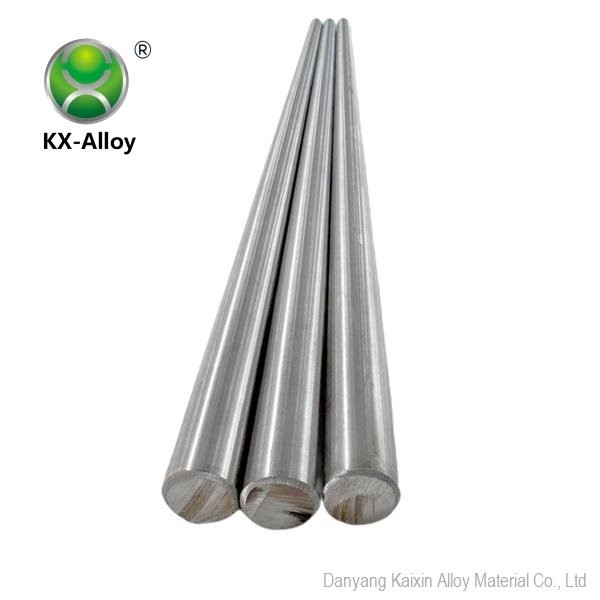

KX Incoloy 800H Nickel Alloy Welding Wire Round Bar Light Rod For Incoloy Alloy
Product Description and Application
Incoloy 800H also known as NS112,
Incoloy 800H is an austenitic alloy widely used in high temperature and pressure structural parts. The alloy has a high chromium content and sufficient nickel content, so it has a high temperature corrosion resistance. It has excellent stress corrosion rupture resistance in the industrial application of pressurized water, so it is used to manufacture stress corrosion rupture resistance equipment.Its corrosion resistance is better than ordinary austenitic stainless steel, better than Inconel 600 and Monel 400 alloys
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Grade | Cr | Ni | Mn | Si | Al | Ti | Al+Ti | C | Cu | P | S | Fe |
| Min | 19 | 30 | -- | -- | 0.15 | 0.15 | 0.85 | 0.06 | -- | -- | -- | 39.5 |
| Max | 23 | 35 | 1.5 | 1 | 0.6 | 0.6 | 1.2 | 0.1 | 0.75 | 0.045 | 0.015 | -- |
| Density | 8.0 g/cm3 |
| Melting Point | 1350-1400 ℃ |
| Grade | Tensile strength | Yield Strength | Elongation |
| Rm N/mm2 | RP0.2N/mm2 | A5 % | |
| Incoloy800H | 450 | 180 | 35 |
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm
|
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube |
¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
