Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy925
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests' request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80 TONS PER MONTH
Features: |
High Temperature Resistance, Corrosion Resistance And Oxidation Resistance |
Shape: |
Wire,Strip,Rod,Pipe,Plate |
Alloy Type: |
Nickel-molybdenum-copper Alloy |
Raw Materials: |
NI42-46%,CR19.5-22.5%,MO2.5-3.5% |
Executive Standard: |
ASTM |
Delivery State: |
Sosoloid |
Application: |
Marine Chemical Industry |
Size: |
Negotiable |
Features: |
High Temperature Resistance, Corrosion Resistance And Oxidation Resistance |
Shape: |
Wire,Strip,Rod,Pipe,Plate |
Alloy Type: |
Nickel-molybdenum-copper Alloy |
Raw Materials: |
NI42-46%,CR19.5-22.5%,MO2.5-3.5% |
Executive Standard: |
ASTM |
Delivery State: |
Sosoloid |
Application: |
Marine Chemical Industry |
Size: |
Negotiable |

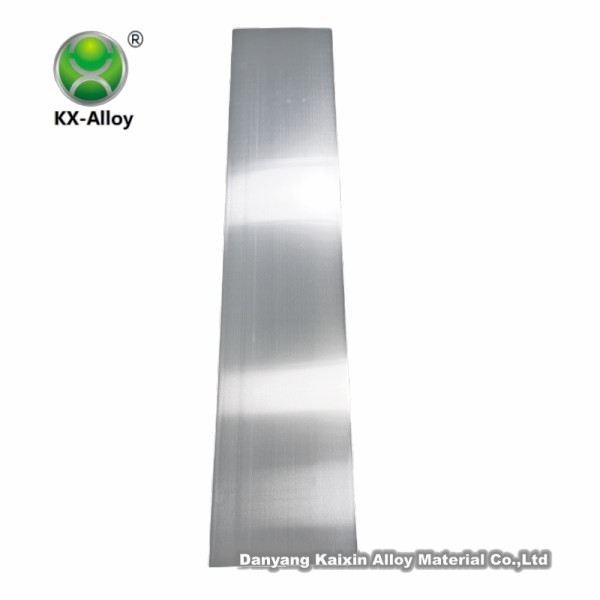

KX Incoloy 925 Nickel Alloy Welding Wire Round Bar Light Rod For Incoloy Alloy
Product Description and Application
Incoloy925 is high temperature and corrosion resistant steel,adding less Ti and Al, which is a kind of austenitic precipitation hardening steel containing Ni-Fe-Cr. Through solid solution and aging treatment, make γ phase particle and Ni(Al,Ti) precipitation hardening, which greatly improve the matrix alloy hardness and strength . At the same time, it is resistant to oxidation, hydrogen bubble corrosion, crack corrosion, intergranular corrosion, stress corrosion and etc characteristics, especially suitable for Marine industry environment.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Ni | Cr | Fe | Mo | Cu | Ti | Al | Mn | Si | Nb | C | S | |
| Min | 42.0 | 19.5 | 2.5 | 1.5 | 1.9 | 0.1 | ||||||
| Max | 46.0 | 22.5 | 22.0 | 3.5 | 3.0 | 2.4 | 0.5 | 1.0 | 0.5 | 0.5 | 0.03 | 0.03 |
| Density | Melting Point |
| 8.08g/cm3 | 1311℃-1366℃ |
| Production method |
Tensile Strength MPa |
Yield Strength MPa |
Percentage Elongation % |
Shrinkage % |
Hardness HRC |
| Bar+Solid Solution | 685 | 271 | 56 | --- | --- |
| Bar+Solid Solution+Aging | 1154 | 832 | 27 | --- | 32 |
| Pipe+Solid Solution+Aging | 1189 | 830 | 27 | --- | 35 |
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
