Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-AlloyX
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guest request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80TONS PER MONTH
Features: |
High Temperature Resistance And Corrosion Resistance, Oxidation Resistance |
Alloy Type: |
Nickel-chrome-molybdenum Alloy |
Size: |
Negotiable |
Shape: |
Wire, Strip, Rod, Pipe, Plate |
Delivery State: |
Sosoloid |
Raw Materials: |
Ni Rem%,CR20.5-23.5%,MO8.0-10.0%,CO0.5-2.5% |
Executive Standard: |
ASTM |
Application: |
Used For Make Aeroengine Blades, Combustion Chamber Parts And Etc High Temperature Parts, The Thermal Cracks And Ablative Damage Are Repaired By Welding Method |
Features: |
High Temperature Resistance And Corrosion Resistance, Oxidation Resistance |
Alloy Type: |
Nickel-chrome-molybdenum Alloy |
Size: |
Negotiable |
Shape: |
Wire, Strip, Rod, Pipe, Plate |
Delivery State: |
Sosoloid |
Raw Materials: |
Ni Rem%,CR20.5-23.5%,MO8.0-10.0%,CO0.5-2.5% |
Executive Standard: |
ASTM |
Application: |
Used For Make Aeroengine Blades, Combustion Chamber Parts And Etc High Temperature Parts, The Thermal Cracks And Ablative Damage Are Repaired By Welding Method |

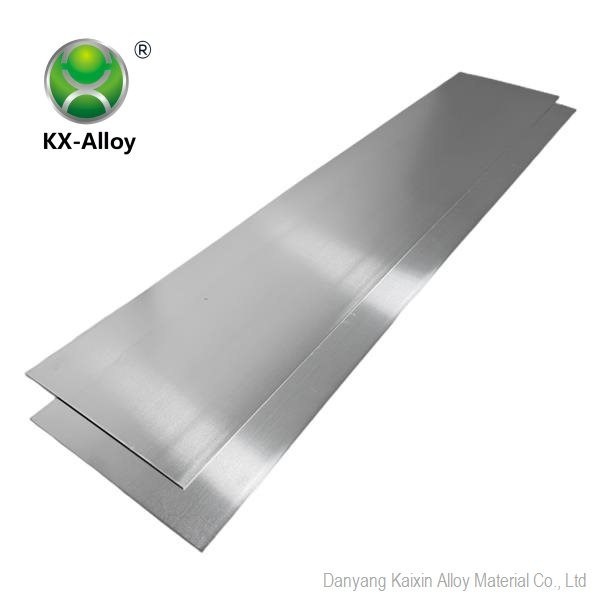

KX Hastelloy X Welding Wire Sheet Pipe Tubing Plate on Hastelloy Alloy
Product Description and Application
HastelloyX is also known as GH3536, GH536 (China), NC22FeD (France),.2.4665, NiCr22Fe18Mo (Germany), HastelloyX, UNS N06002(USA) NiCr21Fe18Mo9(ISO)
HastelloyX has excellent oxidation resistance, reducibility and neutral environment capability, which is suitable for smelting furnace and jet engines operating at up to 1200 ℃. The alloy forms a protective and tough oxide film that will not fall off. Therefore, it maintains oxidation resistance at high temperatures.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Ni | Cr | Fe | C | Mn | Si | Mo | Co | Al | W | B | P | S | |
| Min | 20.5 | 17.0 | 0.05 | 8.0 | 0.5 | 0.2 | |||||||
| Max | Rem | 23.5 | 20.0 | 0.15 | 1.0 | 1.0 | 10.0 | 2.5 | 0.1 | 1.0 | 0.005 | 0.015 | 0.01 |
| Density | ρ=8.3g/cm3 |
| Melting Point | 1260-1355℃ |
Welding
HastelloyX can be welded with various welding processes, such as tungsten inert gas welding, plasma arc welding, manual subarc welding, metal inert gas welding, molten inert gas welding. Impulse arc welding is preferred.
Before welding, the material shall be treated in solid solution state to remove oxidation skin, oil stain and various marks. Both sides of the weld shall be polished to a bright metal surface with a width of about 25mm.
With low heat input, the interlayer temperature does not exceed 100℃.
No pre-weld - and post-weld heat treatment is required
Welding material
GTAW/GMAW Nicrofer S 4722
W.-Nr. 2.4613
SG-NiCr21Fe18Mo
AWS A 5.14 ERNiCrMo-2
BS 2901 NA45
SMAW
AWS A 5.11 ENiCrMo-2
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm
|
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
