Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy HS188
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guest request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80TONS PER MONTH
Features: |
Excellent High Temperature Strength, Oxidation Resistance Below 1100°C And Good Ductility After Aging |
Alloy Type: |
Cobalt-based Reinforced Superalloy |
Size: |
Negotiable |
Shape: |
Wire, Strip, Rod, Pipe, Plate |
Delivery State: |
Sosoloid |
Raw Materials: |
NI20-24%,CR20-24%,W13-16%,CO Rem |
Executive Standard: |
ASTM，GB /T 14992 |
Application: |
Make High-temperature Components For Gas Turbines And Missiles |
Features: |
Excellent High Temperature Strength, Oxidation Resistance Below 1100°C And Good Ductility After Aging |
Alloy Type: |
Cobalt-based Reinforced Superalloy |
Size: |
Negotiable |
Shape: |
Wire, Strip, Rod, Pipe, Plate |
Delivery State: |
Sosoloid |
Raw Materials: |
NI20-24%,CR20-24%,W13-16%,CO Rem |
Executive Standard: |
ASTM，GB /T 14992 |
Application: |
Make High-temperature Components For Gas Turbines And Missiles |

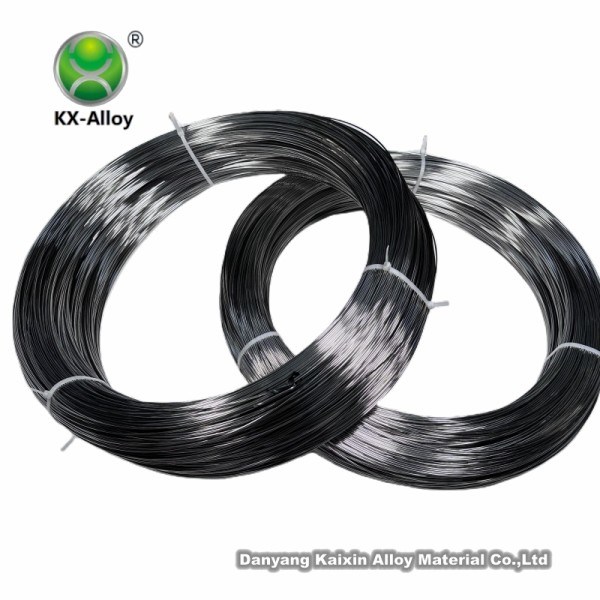

KX GH5188 Welding Wire Sheet Pipe Tubing Plate on Hastelloy Alloy
Product Description and Application
GH5188 is also known as UNS R30188, UNS R30188, Hastelloy188 , Haynes188,W.N.2.4683
GH5188 is a kind of solid solution strengthened cobalt based superalloy. Add 14% tungsten solid solution strengthening then the alloy has excellent high temperature thermal strength. Add the high chromium and trace blue, then the alloy has good high temperature oxidation resistance and satisfactory forming, welding and etc technological properties. It is suitable for the manufacture of aeroengine parts with high strength under 980℃ and oxidation resistance under 1100℃ . It can also be used in space engines and space shuttles.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Alloy Grade | C | Mn | Si | P | S | Ni | Cr | Fe | W | Co | B | Cu | La | Ag | Fb | Bi |
| GH5188 |
0.05 - 0.15 |
0.2 - 0.5 |
≤ 0.015 |
≤ 0.020 |
≤ 0.015 |
20.0 - 24.0 |
20.0 - 24.0 |
≤ 3.0 |
13.0 - 16.0 |
Rem |
≤ 0.015 |
≤ 0.07 |
0.03 -0.12 |
≤ 0.001 |
≤ 0.001 |
≤ 0.0001 |
| Density | 8.24g/cm3 |
| Melting point | 1260-1320℃ |
| Magnetic Property | Nil |
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
