Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy Mo-10
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80TONS PER MONTH
Features: |
Used For Welding Of Low Carbon Nickel Chromium Molybdenum, Especially For UNS No6002 Welding, But Also For The Welding Of Chromium-nickel-molybdenum Austenitic Stainless Steel, Low Carbon Nichromo Double Core Surface And Other Nickel-based Alloys. |
Alloy Type: |
Nickel Chromium Molybdenum Alloy |
Delivery State: |
Sosoloid |
Size: |
Negotiable |
Shape: |
Parcel Wire, Barrel Wire, Vertical Strip |
Raw Materials: |
NI Rem,MO12.5-14.5%, CR20.0-22.5% |
Executive Standard: |
GB/T15620-2008，AWS A5.14 :2005 |
Application: |
Petrochemical Pipeline And Valve Surfacing Welding |
Features: |
Used For Welding Of Low Carbon Nickel Chromium Molybdenum, Especially For UNS No6002 Welding, But Also For The Welding Of Chromium-nickel-molybdenum Austenitic Stainless Steel, Low Carbon Nichromo Double Core Surface And Other Nickel-based Alloys. |
Alloy Type: |
Nickel Chromium Molybdenum Alloy |
Delivery State: |
Sosoloid |
Size: |
Negotiable |
Shape: |
Parcel Wire, Barrel Wire, Vertical Strip |
Raw Materials: |
NI Rem,MO12.5-14.5%, CR20.0-22.5% |
Executive Standard: |
GB/T15620-2008，AWS A5.14 :2005 |
Application: |
Petrochemical Pipeline And Valve Surfacing Welding |

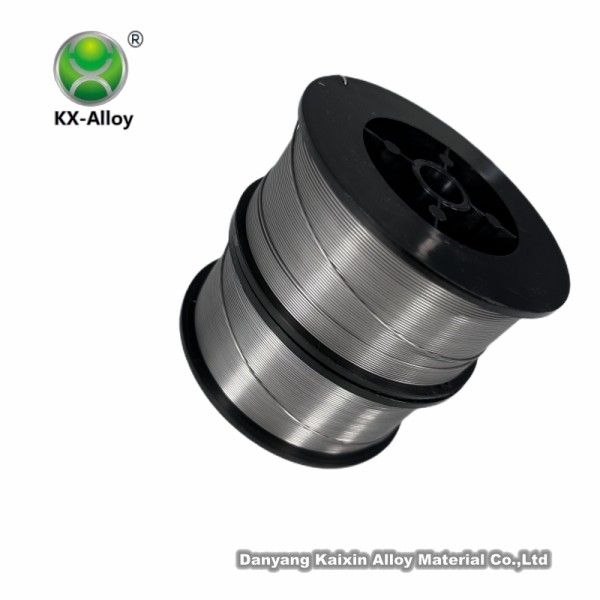

KX ERNiCrMO-10 Welding Wire Light Rod on Nickel Based Welding Wire Alloy
Product Description and Application
ERNiCrMo - 4 is also known as N10276 SNi6276, NiCr15Mo16Fe6W4
Ernicrmio-4 is 57Ni16Cr15.5Mo nickel-base welding wire for nickel-chromium-molybdenum series. The fused metal has good mechanical properties, good resistance to pitting corrosion and crevice corrosion in various corrosive medium. It includes stable arc, beautiful forming, good flow of molten iron with excellent welding process performance.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Wire Type |
Composition Code |
AWS A5.14:2005 |
C | Mn | Fe | Si | Cu | Nia | Coa | Cr | Mo | W |
| SN16022 | NiCr21Mo13Fe4W3 | ERNiCrMO-10 |
≤ 0.01 |
≤ 0.5 |
2.0 - 6.0 |
≤ 0.1 |
≤ 0.5 |
≧ 49.0 |
≤ 2.5 |
20.0 - 22.5 |
12.5 - 14.5 |
2.5 - 3.5 |
Other Technical Requirements
Welding Wire Diameter and Allowable Deviation
| Package | Welding Wire Diameter | Allowable Deviation |
| Vertical Bar |
1.6,1..8,2.0,2.4,2.5,2.8,3.0,3.2, 4.0,4.8,5.0,6.0,6.4 |
±0.1 |
| Welding Wire Coil |
+0.01 -0.04 |
|
|
Wire Reel Diameter 100mm and 200mm |
0.8,0.9,1.0,1.2,1.4,1.6 | |
|
Wire Reel Diameter 270mm and 300mm |
0.5,0.8,0.9,1.0,1.2,1.4,1.6,2.0, 2.4,2.5,2.8,3.0,3.2 |
|
| Welding wire can be produced in other sizes, deviations and package as agreed by both parties | ||
|
Allowable deviation of ±0.1 diameter when used for hand-filled wire |
||
Welding Wire Loose Diameter and Warp Pitch
| Diameter of Wire Reel | 100 | 200 | 270,300 |
| Loose Diameter | 60~380 | 250~890 | 380~1300 |
| Warp Pitch | ≤13 | ≤19 | ≤25 |
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
