Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy955
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80TONS PER MONTH
Features: |
High Temperature Oxidation Resistance, Heat Shock Resistance And Abrasion Resistance |
Alloy Type: |
Nickel Based Welding Wire |
Delivery State: |
Sosoloid |
Size: |
Negotiable |
Shape: |
Wire |
Raw Materials: |
NI≥95%,Al4.5-5.5% |
Executive Standard: |
ASTM |
Application: |
Boiler Anticorrosion, Wear Resistance, Equipment Mechanical Parts Repair |
Features: |
High Temperature Oxidation Resistance, Heat Shock Resistance And Abrasion Resistance |
Alloy Type: |
Nickel Based Welding Wire |
Delivery State: |
Sosoloid |
Size: |
Negotiable |
Shape: |
Wire |
Raw Materials: |
NI≥95%,Al4.5-5.5% |
Executive Standard: |
ASTM |
Application: |
Boiler Anticorrosion, Wear Resistance, Equipment Mechanical Parts Repair |

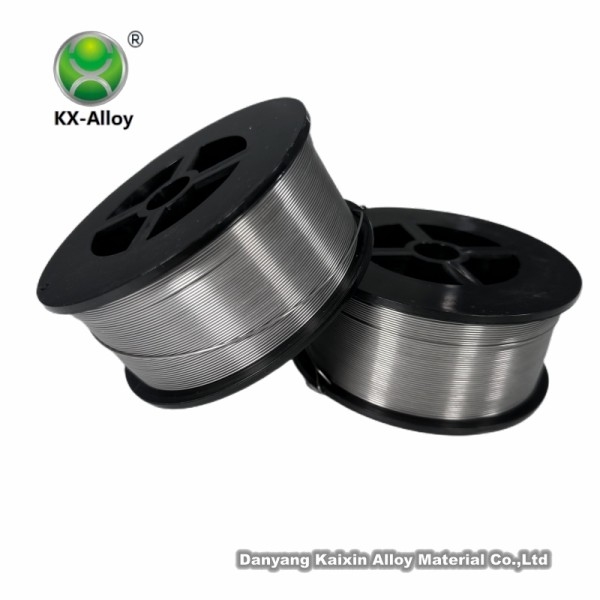

KX Ni95Al5 Welding Wire Light Rod on Nickel Based Welding Wire Alloy
Product Description and Application
Ni95Al5 is dense coating with high temperature oxidation resistance, heat shock resistance and abrasion resistance and etc properties, its binding strength is above 55MPa and the coating can also be used directly as a working layer.
Product purpose
Boiler anticorrosion, wear resistance, equipment mechanical parts repair and protection
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Grade | Ni% | Al% | Mn% | Fe% | Si% | Cu% | C% | Ti% |
| Ni95AL5 | Rem | 4.5-5.5 | ≤ 0.3 | ≤ 0.3 | ≤ 0.5 | ≤ 0.08 | ≤ 0.005 | ≤ 0.3% |
Other Technical Requirements
Welding Wire Diameter and Allowable Deviation
| Package | Welding Wire Diameter | Allowable Deviation |
| Vertical Bar |
1.6,1..8,2.0,2.4,2.5,2.8,3.0,3.2, 4.0,4.8,5.0,6.0,6.4 |
±0.1 |
| Welding Wire Coil |
+0.01 -0.04 |
|
|
Wire Reel Diameter 100mm and 200mm |
0.8,0.9,1.0,1.2,1.4,1.6 | |
|
Wire Reel Diameter 270mm and 300mm |
0.5,0.8,0.9,1.0,1.2,1.4,1.6,2.0, 2.4,2.5,2.8,3.0,3.2 |
|
| Welding wire can be produced in other sizes, deviations and package as agreed by both parties | ||
|
Allowable deviation of ±0.1 diameter when used for hand-filled wire |
||
Welding Wire Loose Diameter and Warp Pitch
| Diameter of Wire Reel | 100 | 200 | 270,300 |
| Loose Diameter | 60~380 | 250~890 | 380~1300 |
| Warp Pitch | ≤13 | ≤19 | ≤25 |
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
