Product Details
Place of Origin: China
Brand Name: KAIXIN
Certification: ISO9001:2015
Model Number: KX-Alloy PS45
Payment & Shipping Terms
Minimum Order Quantity: 200KG
Price: To negotiate
Packaging Details: Wooden Box, size as per guests request
Delivery Time: 45~60days
Payment Terms: T/T, L/C
Supply Ability: 50~80TONS PER MONTH
Features: |
Corrosion Resistance |
Alloy Type: |
Nickel-based Welding Wire |
Delivery State: |
Sosoloid |
Size: |
Negotiable |
Shape: |
Wire |
Raw Materials: |
NI≥52%,Cr42-46 |
Executive Standard: |
AWS A5.14:2018,GB/T15620 |
Application: |
Used For Anti-corrosion Surfacing Antiseptic Surfacing Of Water Wall On Pulverized Coal Furnace |
Features: |
Corrosion Resistance |
Alloy Type: |
Nickel-based Welding Wire |
Delivery State: |
Sosoloid |
Size: |
Negotiable |
Shape: |
Wire |
Raw Materials: |
NI≥52%,Cr42-46 |
Executive Standard: |
AWS A5.14:2018,GB/T15620 |
Application: |
Used For Anti-corrosion Surfacing Antiseptic Surfacing Of Water Wall On Pulverized Coal Furnace |

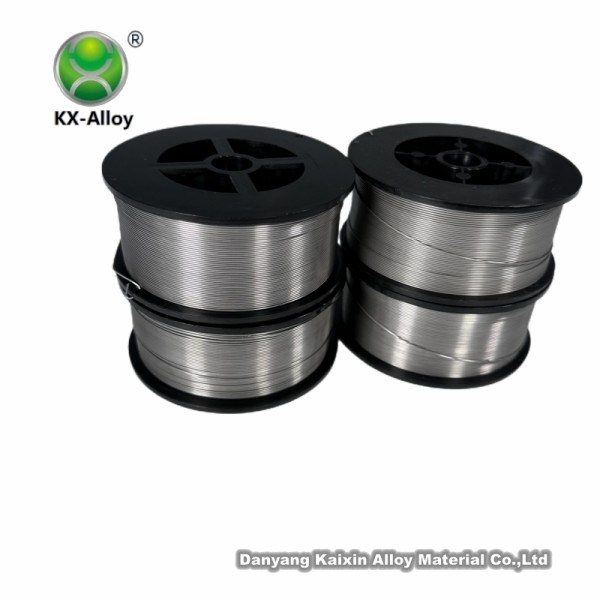

KX 45CT Sprayed Wire Welding Wire Light Rod on Nickel Based Welding Wire Alloy
Product Description and Application
45CT (PS45,NiCr44Ti)Sprayed Wire is used for fusion gas welding and tungsten inert gas welding, surfacing nickel-chromium alloy on Nickel iron chromium steel tubes and casting repair welding. The weld metal has the ability to resist high temperature corrosion and the smoke corrosion containing sulfur and alum in the air.
Process Performance and Requirements
Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)
| Grade | C | Mn | Fe | Si | Cu | Fe | Ni | Co | Al | Ti | Cr |
| 45CT Sprayed Wire | 0.01-0.1 | ≤0.20 | ≤0.50 | ≤0.20 | ≤0.50 | 6.00～10.00 | ≥52 | ~ | ~ | 0.3-1.0 | 42-46 |
Other Technical Requirements
Welding Wire Diameter and Allowable Deviation
| Package | Welding Wire Diameter | Allowable Deviation |
| Vertical Bar |
1.6,1..8,2.0,2.4,2.5,2.8,3.0,3.2, 4.0,4.8,5.0,6.0,6.4 |
±0.1 |
| Welding Wire Coil |
+0.01 -0.04 |
|
|
Wire Reel Diameter 100mm and 200mm |
0.8,0.9,1.0,1.2,1.4,1.6 | |
|
Wire Reel Diameter 270mm and 300mm |
0.5,0.8,0.9,1.0,1.2,1.4,1.6,2.0, 2.4,2.5,2.8,3.0,3.2 |
|
| Welding wire can be produced in other sizes, deviations and package as agreed by both parties | ||
|
Allowable deviation of ±0.1 diameter when used for hand-filled wire |
||
Welding Wire Loose Diameter and Warp Pitch
| Diameter of Wire Reel | 100 | 200 | 270,300 |
| Loose Diameter | 60~380 | 250~890 | 380~1300 |
| Warp Pitch | ≤13 | ≤19 | ≤25 |
Professional Customization
| Cold-drawn Wire | ¢0.3~¢18mm(Delivery in rolls or trays) |
| Hot-Rolling Wire | ¢5.5~¢20mm(Delivery in rolls) |
| Strip | thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips) |
| Smooth Forged Rod on a Lathe |
¢60~350mm,L800-2500mm |
| Hot-rolled Burnishing | ¢20~80mm,L1000-5000mm |
| Cold Drawn and Burnishing | ¢2.5~18mm,L1000-8000mm |
| Seamless Tube | ¢1~275mm,wall thickness 0.2~30,L1000-8000mm |
