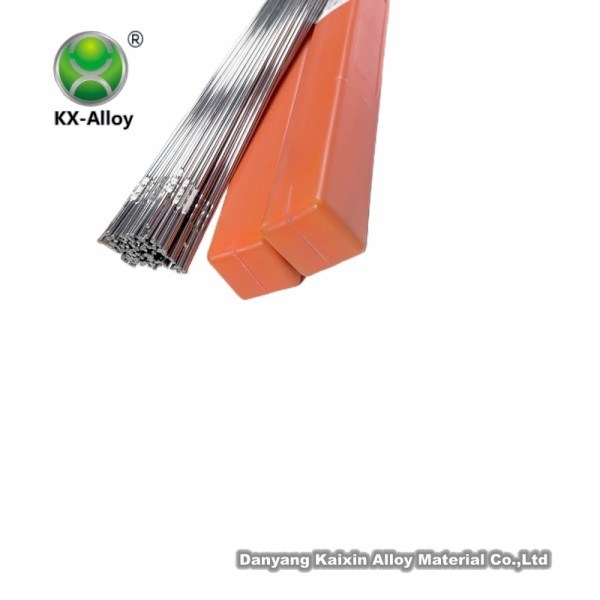

HCF-95 Nickel Based Alloy Welding Wire Light Rod ASTM

Product Details

Place of Origin: China

Brand Name: KAIXIN

Certification: ISO9001:2015

Model Number: KX-Alloy955

Payment & Shipping Terms

Minimum Order Quantity: 200KG

Price: To negotiate

Packaging Details: Wooden Box, size as per guests request

Delivery Time: 45~60days

Payment Terms: T/T, L/C

Supply Ability: 50~80TONS PER MONTH

Get Best Price
Highlight:

HCF-95 nickel based alloy

,

nickel based alloy ASTM

,

hcf 95 Wire

Features:
High Temperature Oxidation Resistance, Heat Shock Resistance And Abrasion Resistance
Alloy Type:
Nickel Based Welding Wire
Delivery State:
Sosoloid
Size:
Negotiable
Shape:
Wire
Raw Materials:
NI≥95%,Al4.5-5.5%
Executive Standard:
ASTM
Application:
Boiler Anticorrosion, Wear Resistance, Equipment Mechanical Parts Repair
Features:
High Temperature Oxidation Resistance, Heat Shock Resistance And Abrasion Resistance
Alloy Type:
Nickel Based Welding Wire
Delivery State:
Sosoloid
Size:
Negotiable
Shape:
Wire
Raw Materials:
NI≥95%,Al4.5-5.5%
Executive Standard:
ASTM
Application:
Boiler Anticorrosion, Wear Resistance, Equipment Mechanical Parts Repair
HCF-95 Nickel Based Alloy Welding Wire Light Rod ASTM

KX HCF-95 Welding Wire Light Rod on Nickel Based Welding Wire Alloy



Product Description and Application



HCF-95 is dense coating with high temperature oxidation resistance, heat shock resistance and abrasion resistance and etc properties, its binding strength is above 55MPa and the coating can also be used directly as a working layer.

Product purpose

Boiler anticorrosion, wear resistance, equipment mechanical parts repair and protection



Process Performance and Requirements



  • Product Fusion Process



Vacuum Induction Furnace(VIM) and Electroslag Remelting Furnace(ESR)



  • Product Chemical Composition



Grade Ni% Al% Mn% Fe% Si% Cu% C% Ti%
HCF-95 Rem 4.5-5.5 ≤ 0.3 ≤ 0.3 ≤ 0.5 ≤ 0.08 ≤ 0.005 ≤ 0.3%







  • Other Technical Requirements

Welding Wire Diameter and Allowable Deviation

Package Welding Wire Diameter Allowable Deviation
Vertical Bar

1.6,1..8,2.0,2.4,2.5,2.8,3.0,3.2,

4.0,4.8,5.0,6.0,6.4

±0.1
Welding Wire Coil

+0.01

-0.04

Wire Reel

Diameter 100mm and 200mm

0.8,0.9,1.0,1.2,1.4,1.6

Wire Reel

Diameter 270mm and 300mm

0.5,0.8,0.9,1.0,1.2,1.4,1.6,2.0,

2.4,2.5,2.8,3.0,3.2

Welding wire can be produced in other sizes, deviations and package as agreed by both parties

Allowable deviation of ±0.1 diameter when used for hand-filled wire



Welding Wire Loose Diameter and Warp Pitch

Diameter of Wire Reel 100 200 270,300
Loose Diameter 60~380 250~890 380~1300
Warp Pitch ≤13 ≤19 ≤25



  • Productive Process



HCF-95 Nickel Based Alloy Welding Wire Light Rod ASTM 0







  • Professional Customization

Cold-drawn Wire ¢0.3~¢18mm(Delivery in rolls or trays)
Hot-Rolling Wire ¢5.5~¢20mm(Delivery in rolls)
Strip thickness 0.1~4.5*width 6~350mm(Supply in rolls or straight strips)
Smooth Forged Rod on a Lathe

¢60~350mm,L800-2500mm

Hot-rolled Burnishing ¢20~80mm,L1000-5000mm
Cold Drawn and Burnishing ¢2.5~18mm,L1000-8000mm
Seamless Tube ¢1~275mm,wall thickness 0.2~30,L1000-8000mm
